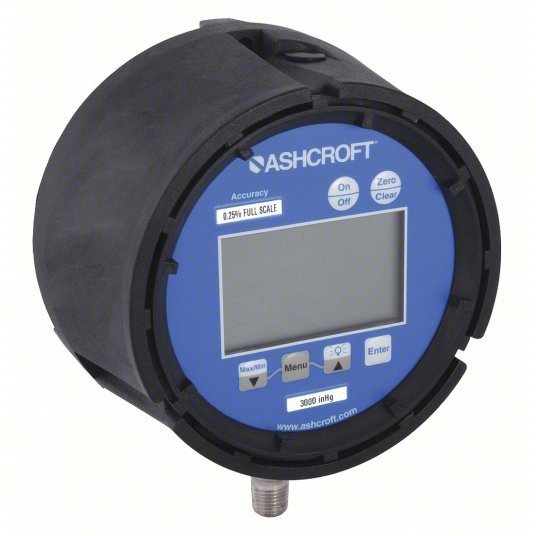

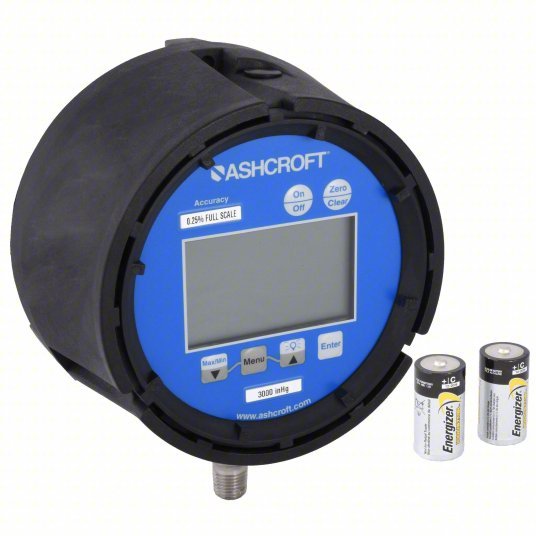

Ashcroft 452074SD02L30BL Digital Pressure Gauge, 0 to 30 psi, 1/4 in MNPT, Plastic, Black
Original price
$532.56
-
Original price
$532.56
Original price
$532.56
$532.56
-
$532.56
Current price
$532.56
Digital Test Pressure Gauge, Accuracy +/-0.25 Percent, Gauge Case Material Thermoplastic, Nominal Dial Size 4 1/2 in, Lens Material Polyester, IP/NEMA Rating IP65, Hazardous Location Rating Not Rated, Sensor Material Stainless Steel, Socket Material 316 Stainless Steel, Sensor Type Diaphragm, Process Connection Type NPT, Display Units bar, ft wc, in Hg, in wc, kg/sq cm, kPa, mBar, mm Hg, Mpa, psi, Process Connection Gender Male, Battery Type (2) C Batteries, Process Connection Location Bottom
| Item | Digital Test Pressure Gauge |
| Connection Location | Bottom |
| Includes | Battery and Instructions |
| Range | 0 to 30 psi |
| Digital Pressure and Vacuum Gauge Type | Digital Pressure Gauge |
| Accuracy | +/-0.25% |
| Application | Pneumatics, Hydraulics |
| Gauge Primary Range Values | 0 to 30 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Plastic |
| Case Color | Black |
| Resolution | Dependent on Display Units Selected |
| Socket Material | 316 Stainless Steel |
| Basic Gauge Wetted Parts | Stainless Steel |
| Case Material | Plastic |
| Series | 2074 |
| Gauge Connection Location | Bottom |
| Digital Gauge Display Units | bar, ft wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, MPa, psi |
| Powered By | (2) C Batteries |
| Calibration Certificate | No |
| Peak Hold | No |
| Gauge Operating Temp. Range | -14 Degrees to 140 Degrees F |
| Display | LCD |
| Agency Compliance | CE, CSA, FM |
| Display Units | bar, ft wc, in Hg, in wc, kg/sq cm, kPa, mBar, mm Hg, Mpa, psi |
| Number of Display Digits | 5 |
| Digital Gauge Accuracy | +/-0.25% Full Scale |
| Gauge Case Material | Thermoplastic |
| Pressure Range | 0 to 30 psi |
| Process Connection | 1/4 in NPT Male |
| Standards | CSA, FM |
| Sensor Type | Diaphragm |
| Process Connection Location | Bottom |
| Lens Material | Polyester |
| Process Connection Gender | Male |
| Blowout Safety Back | No |
| Pressure Gauge Type | Test Pressure Gauge |
| Non-Sparking | No |
| Battery Run Time | 2,000 hr |
| Differentiator (HIDDEN) | 452074SD02L30BL No |
| Low Battery Indicator | No |
| With Calibration Certificate | Standard Gauge |
| Primary Range | 0 to 30 |
| Display Screen Type | LCD |
| Test Pressure Gauge Type | Test Pressure Gauge |
| Primary Display Units | psi |
| Pressure Range Type | Pressure |
| Sensor Material | Stainless Steel |
| Case Shape | Round |
| Data Update Frequency | 100 msec, 200 msec, 500 msec, 1 sec |
| Process Connection Type | NPT |
| Languages | English |
| Battery Type | (2) C Batteries |
| Display Range | 0 to 0.2068 Mpa, 0 to 1551.5 mm Hg, 0 to 2.0685 bar, 0 to 2.1093 kg/sq cm, 0 to 206.4 kpa, 0 to 30 psi, 0 to 61.08 in Hg, 0 to 69.23 ft H2O |
| Includes Mounting Hardware | No |
| Includes Batteries | Yes |
| Adjustable Set Points | No |
| Process Temperature Range | 14 Degrees to 140 Degrees F |
| Temperature Error | 0.04% Degrees F |
| Auto-Shutoff Time | 2 min, 5 min, 15 min, 30 min |
| Backlit Screen | Yes |
| Hazardous Location Rating | Not Rated |
| Panel-Mountable | No |
| Panel Mount Characteristics | 3 0.24 in Dia Holes on 5.37 in Dia Bolt Circle |
| Burst Pressure | 240 psi |
| Auto-Shutoff | Yes |
| Gauge Wetted Parts | Stainless Steel |
| Includes Rubber Boot | No |
| Includes Calibration Certificate | No |
| Memory Features | Min/Max |
| Primary Display Range | 0 to 30 |
| Weatherproof | Yes |
| Power Source | Battery |
| Primary Units | psi |
| IP/NEMA Rating | IP65 |
| Bar Graph | 10 Segments |
| Number of Digits | 5 |
| Gauge Mounting Type | Stem-Mount |
