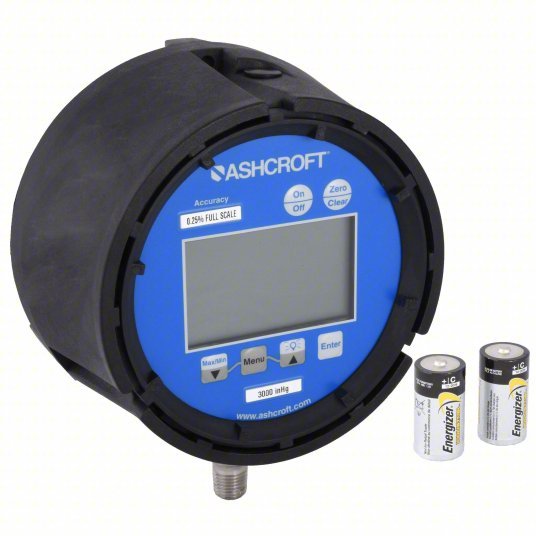

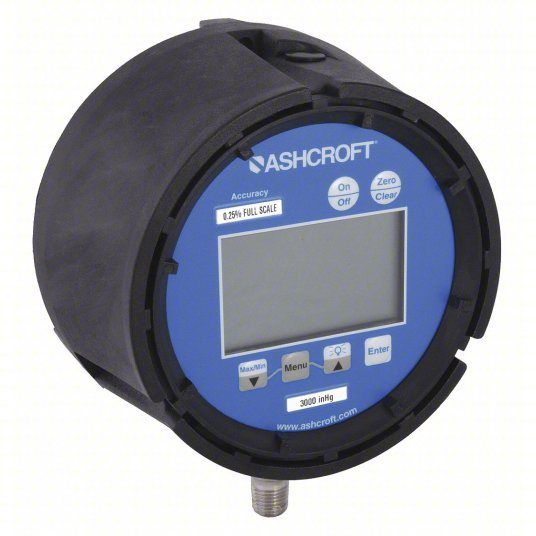

Ashcroft 452074SD02L600BL Digital Pressure Gauge, 0 to 600 psi, 1/4 in MNPT, Plastic, Black
Original price
$532.56
-
Original price
$532.56
Original price
$532.56
$532.56
-
$532.56
Current price
$532.56
Digital Test Pressure Gauge, Accuracy +/-0.25 Percent, Gauge Case Material Thermoplastic, Nominal Dial Size 4 1/2 in, Lens Material Polyester, IP/NEMA Rating IP65, Hazardous Location Rating Not Rated, Sensor Material Stainless Steel, Socket Material 316 Stainless Steel, Sensor Type Diaphragm, Process Connection Type NPT, Display Units bar, ft wc, in Hg, kg/sq cm, kPa, mBar, Mpa, psi, Process Connection Gender Male, Battery Type (2) C Batteries, Process Connection Location Bottom
| Connection Location | Bottom |
| Includes | Battery and Instructions |
| Range | 0 to 600 psi |
| Digital Pressure and Vacuum Gauge Type | Digital Pressure Gauge |
| Accuracy | +/-0.25% |
| Application | Pneumatics, Hydraulics, Measurement and Validation, Mobile Equipment, Pumps, OEM Applications, Test and Measurement, Weighing Systems |
| Gauge Primary Range Values | 0 to 600 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Plastic |
| Case Color | Black |
| Digital Gauge Display Units | bar, ft wc, in Hg, kg/sq cm, kPa, mbar, MPa, psi |
| Digital Gauge Accuracy | +/-0.25% Full Scale |
| Gauge Connection Location | Bottom |
| Case Material | Plastic |
| Display | LCD |
| Peak Hold | No |
| Agency Compliance | CE, CSA, FM |
| Resolution | Dependent on Display Units Selected |
| Gauge Operating Temp. Range | -14 Degrees to 140 Degrees F |
| Powered By | (2) C Batteries |
| Socket Material | 316 Stainless Steel |
| Basic Gauge Wetted Parts | Stainless Steel |
| Display Units | bar, ft wc, in Hg, kg/sq cm, kPa, mBar, Mpa, psi |
| Calibration Certificate | No |
| Series | 2074 |
| Number of Display Digits | 5 |
| Pressure Range | 0 to 600 psi |
| Gauge Case Material | Thermoplastic |
| Standards | CSA, FM |
| Process Connection | 1/4 in NPT Male |
| Process Connection Gender | Male |
| Backlit Screen | Yes |
| Battery Type | (2) C Batteries |
| Gauge Mounting Type | Stem-Mount |
| Hazardous Location Rating | Not Rated |
| Blowout Safety Back | No |
| Includes Rubber Boot | No |
| Panel Mount Characteristics | 3 0.24 in Dia Holes on 5.37 in Dia Bolt Circle |
| Display Range | 0 to 10,000 mbr, 0 to 25 bar, 0 to 25 Mpa, 0 to 2,500 kpa, 0 to 600 in Hg, 0 to 600 psi |
| Gauge Wetted Parts | Stainless Steel |
| Primary Range | 0 to 600 |
| Pressure Range Type | Pressure |
| Memory Features | Min/Max |
| Auto-Shutoff | Yes |
| Weatherproof | Yes |
| Display Screen Type | LCD |
| Pressure Gauge Type | Test Pressure Gauge |
| Non-Sparking | No |
| With Calibration Certificate | Standard Gauge |
| Process Connection Type | NPT |
| Lens Material | Polyester |
| Burst Pressure | 4,800 psi |
| Process Temperature Range | 14 Degrees to 140 Degrees F |
| Includes Batteries | Yes |
| Primary Display Units | psi |
| Bar Graph | 10 Segments |
| Temperature Error | 0.04% Degrees F |
| Test Pressure Gauge Type | Test Pressure Gauge |
| Number of Digits | 5 |
| Sensor Material | Stainless Steel |
| Panel-Mountable | No |
| Case Shape | Round |
| Primary Units | psi |
| Includes Mounting Hardware | No |
| Adjustable Set Points | No |
| IP/NEMA Rating | IP65 |
| Low Battery Indicator | No |
| Differentiator (HIDDEN) | 452074SD02L600BL No |
| Primary Display Range | 0 to 600 |
| Languages | English |
| Auto-Shutoff Time | 2 min, 5 min, 15 min, 30 min |
| Data Update Frequency | 100 msec, 200 msec, 500 msec, 1 sec |
| Process Connection Location | Bottom |
| Sensor Type | Diaphragm |
| Power Source | Battery |
| Includes Calibration Certificate | No |
| Battery Run Time | 2,000 hr |
