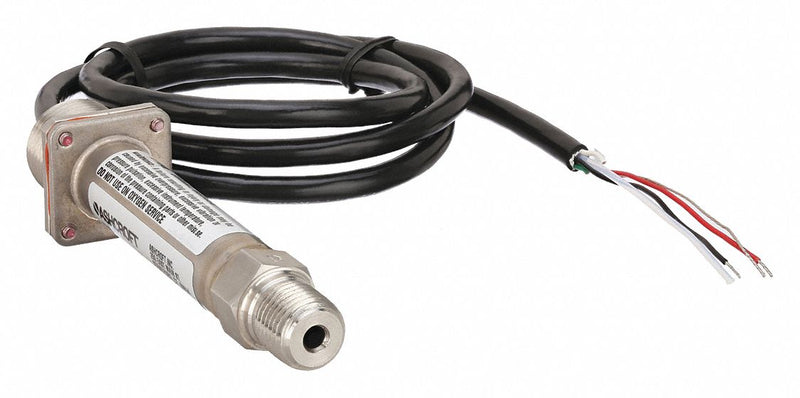

Ashcroft K17M0242C1 5000# Pressure Transmitter, 0 to 5000 psi, 4-20mA DC, 1/4 in MNPT, K1 Series
Original price
$473.23
-
Original price
$473.23
Original price
$473.23
$473.23
-
$473.23
Current price
$473.23
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 5,000 psi, Electrical Connections Cable & Wire Leads, Output 4 to 20mA DC, Accuracy +/-1 Percent of Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 10 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP67, Series K1, Wiring Entry 1/2 in MNPT Conduit Connection, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -20 Degrees F
| Accuracy | +/-1% of Full Scale |
|---|---|
| Housing Material | Stainless Steel |
| Output | 4 to 20mA DC |
| Electrical Connections | Cable & Wire Leads |
| Process Connection | 1/4 in Male NPT |
| Process Connection Type | NPT |
| Operating Temp. | -20 To 180 F |
| Power Required | 10 to 36V DC |
| Response Time | 5 msec |
| Series | K1 |
| Wiring Entry - Transmitter | 1/2 in MNPT |
| Wetted Materials | 316 Stainless Steel |
| Housing | Stainless Steel |
| Range | 0 to 5000 psi |
| Compatible With | Any Process Compatible with Stainless Steel |
| NEMA Rating | NEMA 4X |
| Transmitter Type | Pressure Transmitter |
| Max. Pressure (PSI) | 15,000 psi |
| Safety Rating | Class I Div. 1 Group A, B, C, D, F, G; Class II Div. 1 Group A, B, C, D, F, G; Class III Div. 1 Group A, B, C, D, F, G |
| Features | Perfect Choice for Harsh Operating Environments, Thin Film Sensor Technology and Production Processes Eliminate Signal Instability and Drift, Virtually Unaffected by Shock or Vibration |
| Thermal Error | +/-0.04% |
| Process Connection Gender | Male |
| Maximum Pressure | 5,000 psi |
| Type of Pressure | Positive |
| Burst Pressure | 3x Range |
| Fitting Material | Stainless Steel |
| Cable Material | PVC |
| Storage Temperature Range | -65 Degrees F to 250 Degrees F (-54 Degrees C to 121 Degrees C) |
| Intrinsically Safe | No |
| Wiring Entry | 1/2 in MNPT Conduit Connection |
| Overpressure | 1.5x Range |
| Number of Wires | 2 |
| Standards | CRN |
| Pressure Type Measured | Gauge |
| IP Rating | IP67 |
| Country of Origin | United States |
