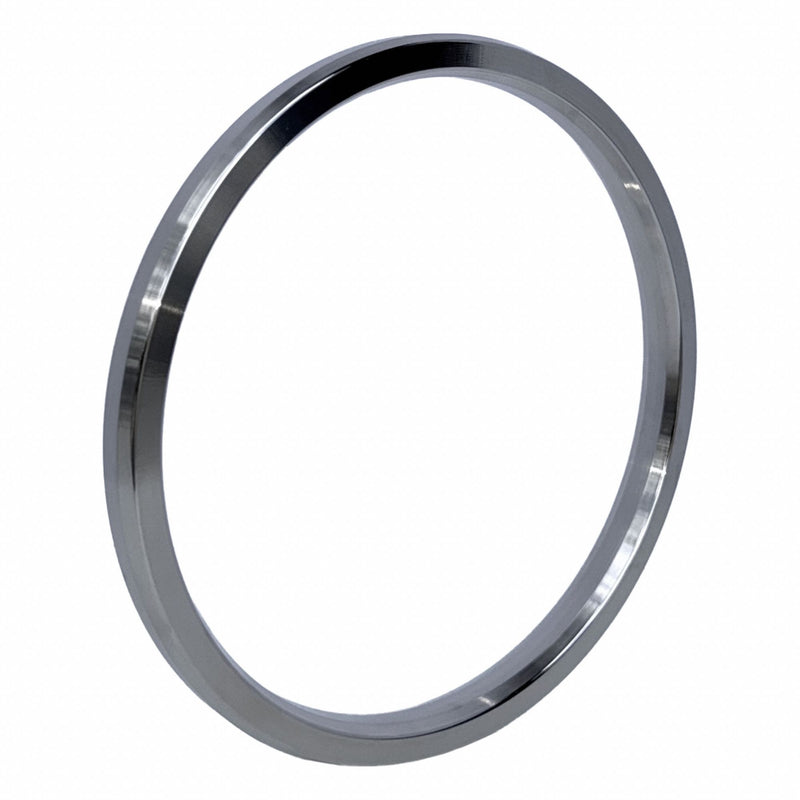

ASP R16.OCT Ring Joint Gasket, Octagonal, ANSI Class 2500, 3/4 in & 1 in
Original price
$3.59
-
Original price
$3.59
Original price
$3.59
$3.59
-
$3.59
Current price
$3.59
These R series ring-type joint (RTJ) gaskets are made of soft iron and seal RTJ flanges in low-temperature conditions. Soft iron conforms to flange surfaces in environments where corrosion is not a concern.
| Product Type | Ring Gasket |
|---|---|
| Shape | Octagonal |
| For ANSI Pressure Class | 2,500 |
| Gasket Material | Soft Iron |
| Color | Yellow |
| For Pipe Size | 3/4 in; 1 in |
| Inside Diameter | 42-7/8 mm |
| Outside Diameter | 58-3/4 mm |
| Thickness | 12-45/64 mm |
| For Environment | High Temperature |
| For Fluid Type | Gas; Oil; Petrochemical |
| Market | Industrial |
| Maximum Operating Pressure | 5,000 psi |
| Features | Metal-to-Metal Seal |
| Standards | API 6A; ASME B16.20 |
| Country of Origin | India |
