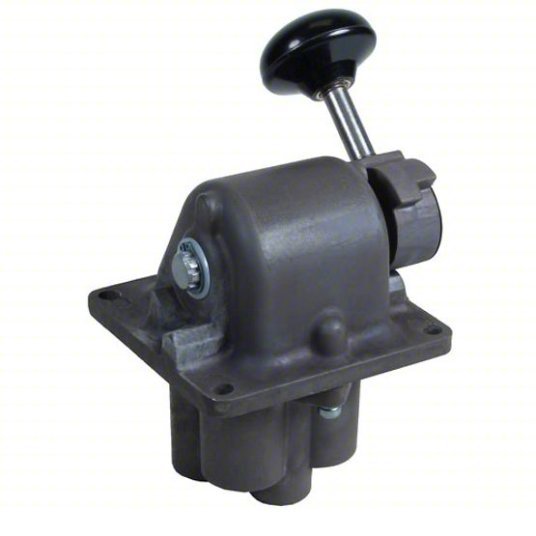

Aventics R431005003 Manual Air Control Valve Lever, Three-Way / Two-Position, Aluminum, Poppet, Detent, 1/4 in
Original price
$571.59
-
Original price
$571.59
Original price
$571.59
$571.59
-
$571.59
Current price
$571.59
Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/4 in, Valve Actuator / Return Manual / Detent, Valve Max. Pressure Rating 13.7 bar, Valve Temp. Range -40 Degrees to 71 Degrees C, Center Position Not Applicable, Body Material Aluminum, Overall Length 4 5/16 in, Overall Height 6 3/8 in
| Number of Ways | Three-Way |
| Number of Positions | Two-Position |
| Valve Temp. Range | -40 Degrees to 71 Degrees C |
| Valve Ways and Positions | 3-Way/2-Position |
| Body Material | Aluminum |
| Valve Max. Pressure Rating | 13.7 bar |
| Valve Actuator / Return | Manual / Detent |
| Product Type | Manual Air Control Valve |
| Operating Pressure - Maximum | 198 psi |
| Body Style | Panel-Mounted |
| Operating Temperature - Maximum | 160 Degrees F |
| Actuator Type | Lever |
| Valve Type | Poppet |
| For Media | Compressed Air |
| Return Action | Detent |
| Operating Temperature - Minimum | -40 Degrees F |
