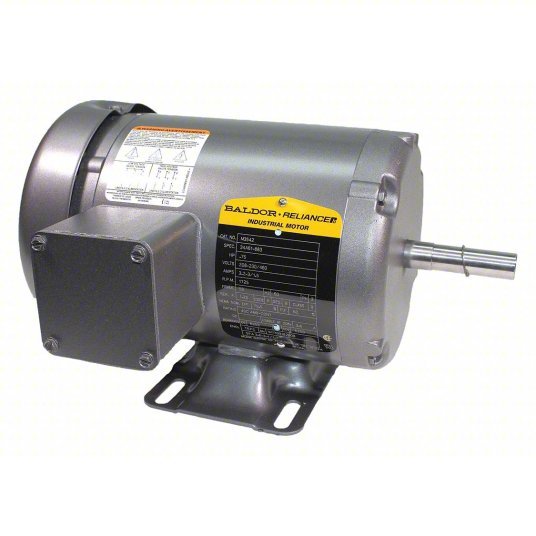

Baldor M3542 General Purpose Motor Totally Enclosed Fan-Cooled, Rigid Base Mount, 3/4 HP

General Purpose Motor, Three Phase, Motor Design 3-Phase, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.2-3/1.5 A, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

Motor Enclosure Design	Totally Enclosed Fan-Cooled
Motor Mounting Type	Rigid Base
HP	3/4
RPM Range	1,701-1,800
Voltage	208-230/460V AC
Frame	56
Motor Thermal Protection	None
Motor Service Factor	1.25
Voltage Compatibility	200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Application	General Application
Motor Design	3-Phase
Nameplate RPM	1,725
Motor Shaft Rotation	CW/CCW
Motor Mounting Position	All Angle
Motor Frame Material	Steel
Motor Shaft Design	Keyed
Standards	CSA, UR
Includes	Gasketed Conduit Box
Motor Bearings	Ball
Phase	Three
Nominal Efficiency	75.5 %
Ins. Class	B
CC Number	CC031A
Full Load Amps	3.2-3/1.5 A
Hz	60 Hz
Max. Ambient Temp.	104 Degrees F
No. of Speeds	1
Frame Material	Rolled steel
Inverter Rated	No
RPM Group	1701-1800
Duty	Continuous
Capacitor Required	No
Green Certification or Other Recognition	NEMA Premium(R) Rated
Weight	26 lb
Duty Cycle	Continuous
Usable @ 200V	No
Usable @ 208V	Yes
NEMA Design	B
