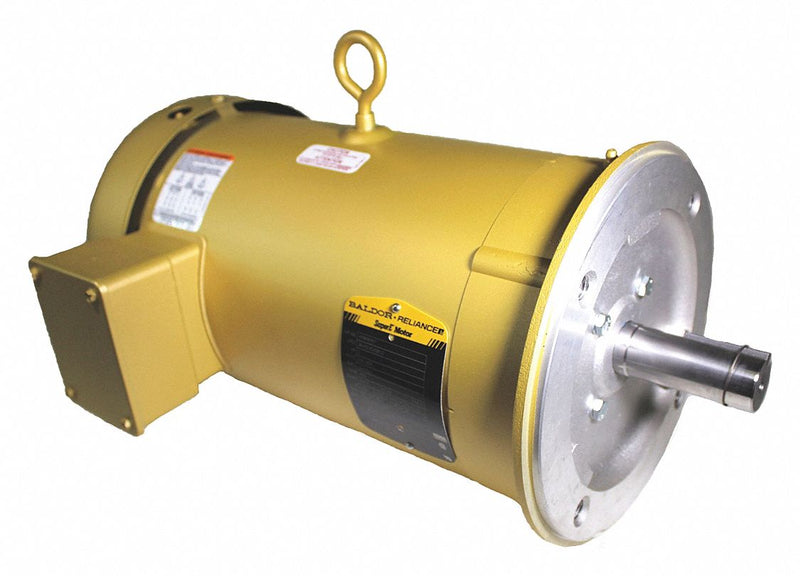

Baldor VEM3615T General Purpose Motor, 5 HP, 208-230/460V AC, Totally Enclosed Fan Cooled, C-Face Mount, 1750 rpm, 184TC Frame
Original price
$1,742.30
-
Original price
$1,742.30
Original price
$1,742.30
$1,742.30
-
$1,742.30
Current price
$1,742.30
NEMA 180 frame three-phase general purpose AC motors have a standard 1-1/8" diameter, 2-3/4" length shaft whose center is 4-1/2" above the mounting surface.
| HP | 5 |
| Phase | Three |
| Voltage | 208-230/460V AC |
| Frame | 184TC |
| Nameplate RPM | 1750 rpm |
| Hz | 60 Hz |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | C-Face |
| Inverter Rated | Yes |
| Motor Frame Material | Steel |
| Overall Length | 18-1/16 in |
| Weight | 89 lb |
| Nominal Efficiency | 89.5 % |
| Standards | CSA; CSA EEV; UR |
| Country of Origin | United States |
