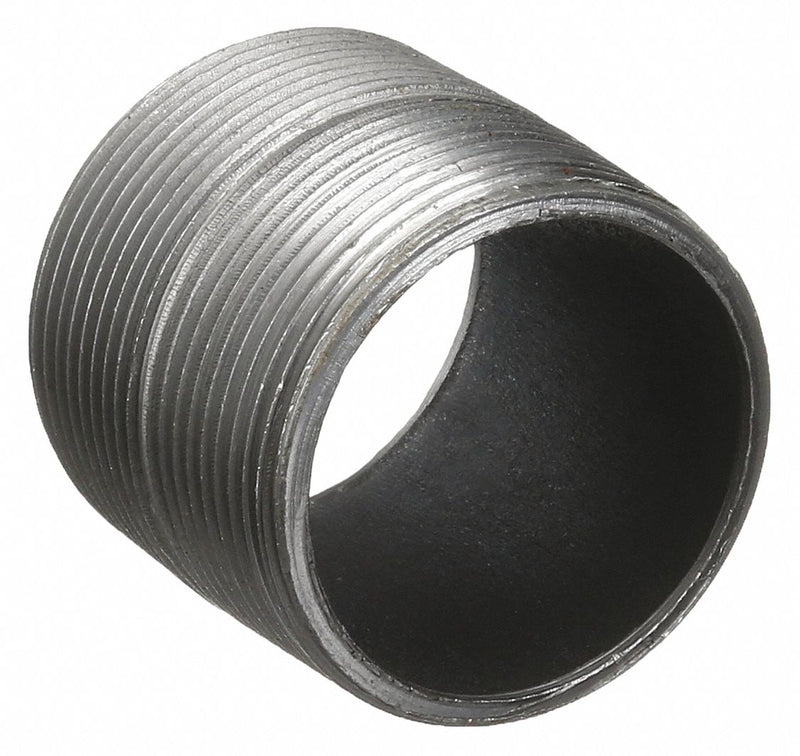

Beck 0330045204 Pipe Nipple, 3 in Nominal Pipe Size, Male NPT x Male NPT, 2 5/8 in Lg, Schedule 40, Welded
UPC: 690291350726 | Harmonization / Schedule B : 7307.99.5045
Country of Origin: United States | Shipping Weight: 0.95 lbs
Original price
$43.24
-
Original price
$43.24
Original price
$43.24
$43.24
-
$43.24
Current price
$43.24
Pipe Nipple, Application Air, Gases, Non-Potable Water, Oils, Finish/Coating Black Anodized, Inside Diameter 3 1/16 in, Manufacture Location Made in USA, Material Steel, Material Grade Grade B, Maximum Operating Pressure 300 psi @ 150 Degrees F, Maximum Steam Pressure 150 psi @ 360 Degrees F, Metal Pipe Construction Welded, Nominal Pipe Size 3 in
| Pipe Size - Nominal | 3 in |
|---|---|
| Overall Pipe Length | Close Thread |
| Pipe Size (Fittings) | 3" |
| Wall Thickness | 0.203 in |
| Outside Dia. | 3 1/2 in |
| Inside Dia. | 3 1/16 in |
| Pipe Size (Nominal) | 3" |
| Inside Diameter | 3 1/16 in |
| Nominal Pipe Size | 3 in |
| Outside Diameter | 3 1/2 in |
| Overall Length | 2 5/8 in |
| Wire Rope Length | 2 5/8 in |
| Length | 2 5/8 in |
| Pipe Connection Type | Threaded on Both Ends |
| Pipe Type | Pipe Nipple |
| Material - Pipe | Black Steel |
| Pipe Schedule | 40 |
| Pipe Weld Type | Continuous Weld |
| Pipe Thread Type | MNPT x MNPT |
| Max. Pressure | 300 psi @ 150 Degrees F |
| Seamless/Welded | Welded |
| Max. Steam Pressure | 150 psi WSP @ 360 Degrees F |
| Pipe Fitting Connection Type | MNPT x MNPT |
| Standards | ASTM A53 Type F, ASTM A733, Grade A |
| Metal Detectable | Yes |
| Specific Pipe Fitting Shape | Nipple |
| Basic Pipe Fitting Shape | Nipple |
| Basic Pipe Fitting Material | Metal |
| Pipe Fitting Schedule/Class | Schedule 40 |
| Side B Gender | Male |
| Thread Configuration | Fully Threaded |
| Thread Type | NPT |
| Side B Thread Type | NPT |
| Side A Gender | Male |
| Application | Air, Gases, Non-Potable Water, Oils |
| Material | Steel |
| Material Grade | Grade A |
| Side A Connection Type | Threaded |
| Maximum Operating Pressure | 300 psi @ 150 Degrees F |
| Side B Connection Type | Threaded |
| Metal Pipe Construction | Welded |
| Finish/Coating | Black Anodized |
| Side A Thread Type | NPT |
| Maximum Steam Pressure | 150 psi @ 360 Degrees F |
| Schedule | Schedule 40 |
| Manufacture Location | Made in USA |
| Includes Pre-Applied Thread Sealant | Pre-Applied Thread Sealant Not Included |
| Country of Origin | United States |
