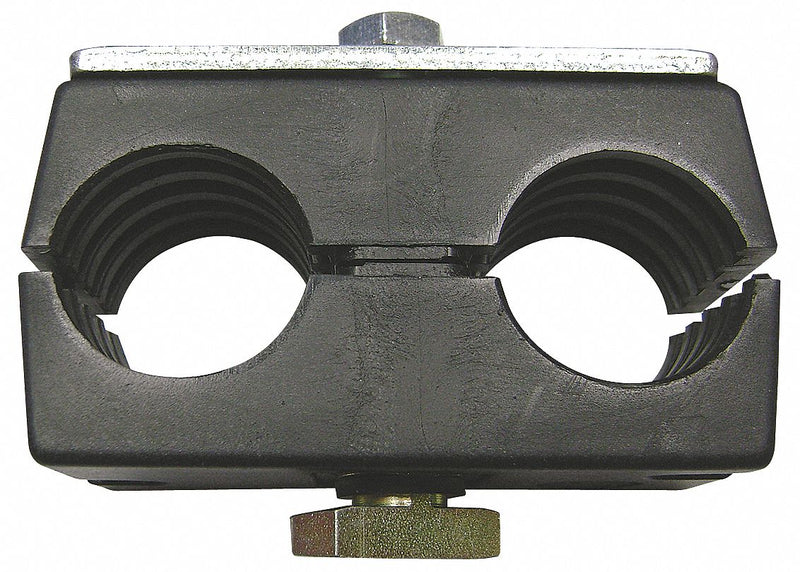

Behringer R0T41125-PP Vibration-Dampening Twin Beta Clamp Kit, Ribbed Bore, Steel, Zinc-Plated, Polypropylene Cushion, Rail-Mount
Original price
$14.46
-
Original price
$14.46
Original price
$14.46
$14.46
-
$14.46
Current price
$14.46
Vibration-Dampening Beta Clamp, Clamp Material Steel, Clamp Material Finish Zinc-Plated, Clamp Type Beta Clamp Assembly, Cushion Material Polypropylene, For Copper Tube Size 1 1/8 in, For Number of Lines 2, Load Capacity 180 lb, Maximum Operating Temperature 194 Degrees F, Mount Type Rail-Mount
| Material | Zinc-Plated |
|---|---|
| Type | Rail Mount |
| Temp. Range (F) | -22 to 194 |
| Hardware Material | Zinc-Plated |
| Insert Material | Polypropylene |
| Includes | CLH Clamp Set (2 Halves), Hex Bolt, RCN-0 Rail Nut, TCP Cover Plate |
| Metal Detectable | Yes |
| Features | Single Clamps with Polypropylene Insert |
| Mount Type | Rail-Mount |
| Clamp Bore Style | Ribbed |
| Clamp Type | Beta Clamp Assembly |
| Clamp Material Finish | Zinc-Plated |
| Includes Mounting Hardware | Yes |
| For Number of Lines | 2 |
| Number of Mounting Holes | 0 |
| Load Capacity | 180 lb |
| Application | Hydraulic Systems |
| Minimum Operating Temperature | -22 Degrees F |
| Maximum Operating Temperature | 194 Degrees F |
| Clamp Material | Steel |
| Cushion Material | Polypropylene |
| Maximum Operating Pressure | 5,000 psi |
| Clamp Style | Rail Mount Clamp |
| Top Plate Material | Electro Zinc |
| For Use On | Pipe, Tube |
| Bolt Material | Electro Zinc |
| Bottom Plate Material | Electro Zinc |
| Series | Twin |
| Country of Origin | United States |
