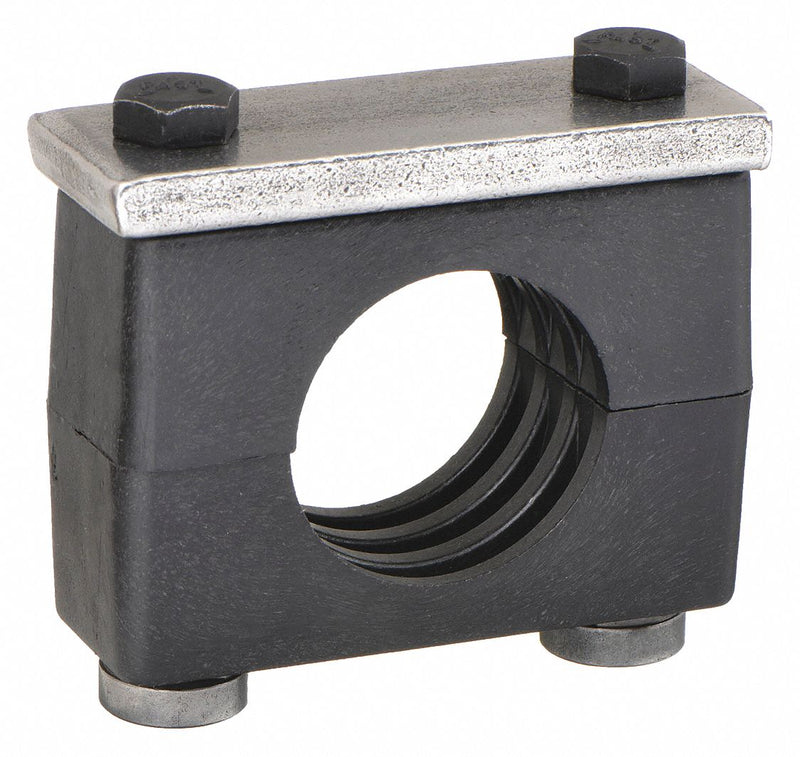

Behringer SH40840-PP Vibration-Dampening Beta Clamp Kit, Ribbed Bore, Steel, Polypropylene Cushion, Weld-On
Original price
$14.74
-
Original price
$14.74
Original price
$14.74
$14.74
-
$14.74
Current price
$14.74
Vibration-Dampening Beta Clamp, Clamp Bore Style Ribbed, Clamp Material Steel, Clamp Type Beta Clamp Assembly, Cushion Material Polypropylene, For Number of Lines 1, Load Capacity 75 lb
| Material | Steel |
|---|---|
| Type | Weld Plate |
| Includes | CLH Clamp Set (2 Halves), SCP Cover Plate, SWP Weld Plate, (2) Hex Bolts |
| Hardware Material | Carbon Steel |
| Insert Material | Polypropylene |
| Temp. Range (F) | -22 to 194 |
| Mount Type | Weld-On |
| For Use On | Pipe, Tube |
| Cushion Material | Polypropylene |
| Maximum Operating Pressure | 5,000 psi |
| Clamp Material | Steel |
| Number of Mounting Holes | 0 |
| Series | Heavy |
| Minimum Operating Temperature | -22 Degrees F |
| Bolt Material | Steel |
| Maximum Operating Temperature | 194 Degrees F |
| Load Capacity | 75 lb |
| Clamp Type | Beta Clamp Assembly |
| Application | Hydraulic Systems |
| Includes Mounting Hardware | Yes |
| Top Plate Material | Steel |
| Clamp Style | Weld Plate Mount Clamp |
| Clamp Bore Style | Ribbed |
| For Number of Lines | 1 |
| Bottom Plate Material | Steel |
| Country of Origin | United States |
