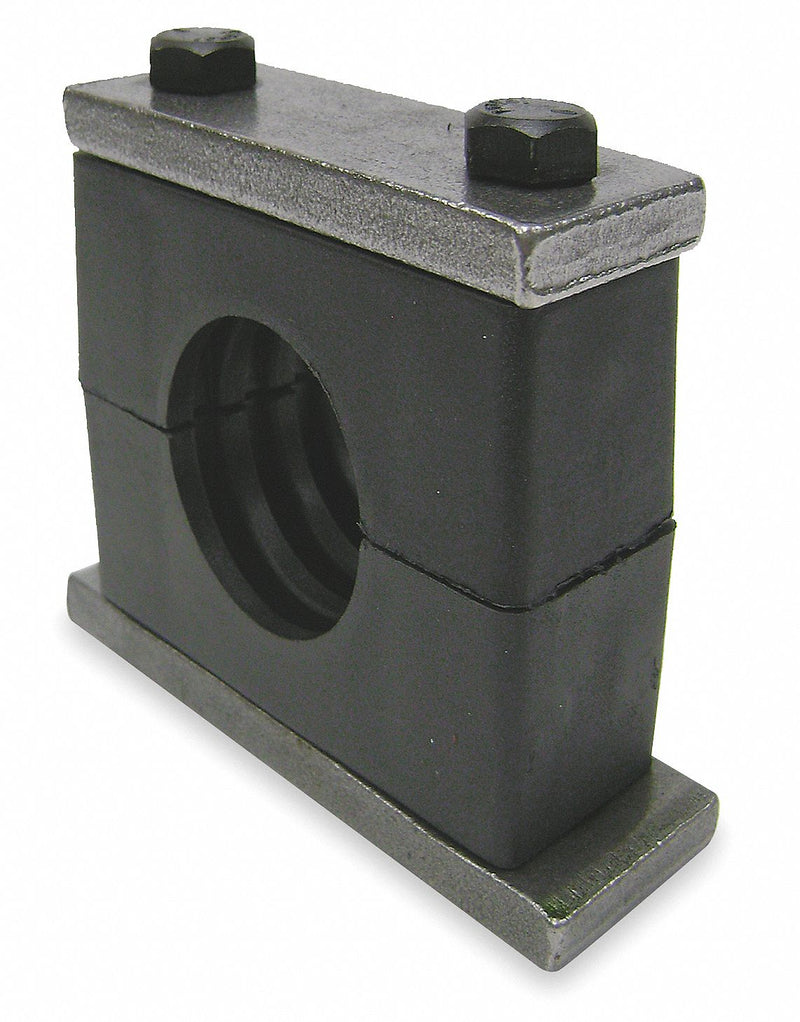

Behringer SHT41181-PP Vibration-Dampening Beta Clamp Kit, Ribbed Bore, 304 Stainless Steel, Polypropylene Cushion, Weld-On
Original price
$47.05
-
Original price
$47.05
Original price
$47.05
$47.05
-
$47.05
Current price
$47.05
Vibration-Dampening Beta Clamp, Clamp Bore Style Ribbed, Clamp Material 304 Stainless Steel, Clamp Type Beta Clamp Assembly, Cushion Material Polypropylene, For Maximum Outside Diameter 30 mm, For Number of Lines 1, Load Capacity 180 lb
| Material | Stainless Steel |
|---|---|
| Type | Weld Plate |
| Insert Material | Polypropylene |
| Hardware Material | 304 Stainless Steel |
| Includes | CLH Clamp Set (2 Halves), SCP Cover Plate, SWP Weld Plate, (2) Hex Bolts |
| Temp. Range (F) | -22 to 194 |
| Metal Detectable | Yes |
| For Number of Lines | 1 |
| Load Capacity | 180 lb |
| Clamp Bore Style | Ribbed |
| Series | Heavy |
| Clamp Material | 304 Stainless Steel |
| Cushion Material | Polypropylene |
| Bolt Material | Stainless Steel |
| Clamp Style | Weld Plate Mount Clamp |
| Mount Type | Weld-On |
| Maximum Operating Temperature | 194 Degrees F |
| Application | Hydraulic Systems |
| Number of Mounting Holes | 0 |
| Minimum Operating Temperature | -22 Degrees F |
| Maximum Operating Pressure | 5,000 psi |
| Clamp Type | Beta Clamp Assembly |
| For Use On | Pipe, Tube |
| Bottom Plate Material | Stainless Steel |
| Top Plate Material | Stainless Steel |
| Includes Mounting Hardware | Yes |
| Country of Origin | United States |
