Name: Best Fit SBFD-FBO-14Z10V 10 Micron Particulate based on Parker FBO Series Filter
Brand: Schroeder Industries
SKU: RWSBFD-FBO-14Z10V
Price: 141.66 USD
Availability: InStock

$141.66 - $141.66

$141.66

$141.66 - $141.66

$141.66

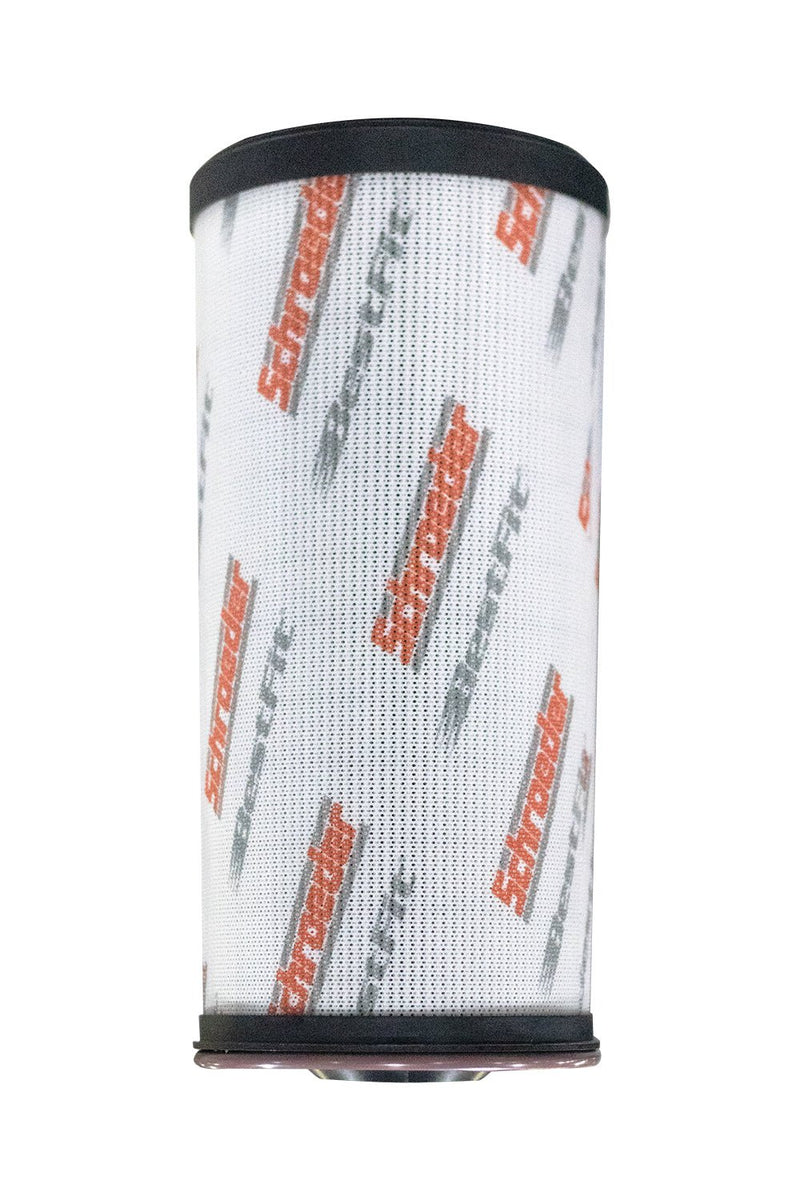

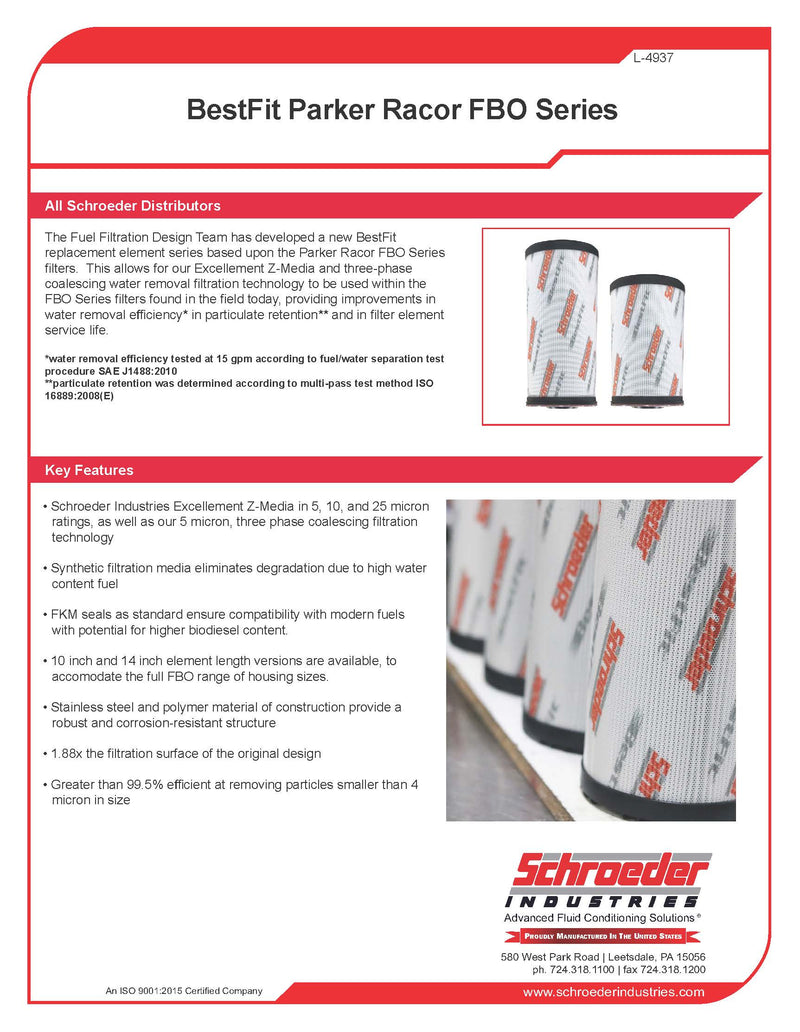

BestFit® replacement element series based upon the Parker FBO Series filters
Provides replacements for both particulate and water removal elements in the field
Allows for our patented coalescing water removal filtration technology to be used within the Parker FBO Series filters found in the field today
Provides improvements in water removal efficiency and an improvement in particulate retention and filter element service life

Specifications

Type	BestFit® Elements - Parker FBO Elements
Seal Material	Viton
Material	Excellement® Z-Media® (Synthetic)
Operating Temperature [Min]	-29 ºC-20 ºF
Operating Temperature [Max]	107 ºC225 ºF
Filter Rating	10 µm
Designation	14 in. Element Length
Operating Pressure [Min]	5.2 bar
Connection Type	Seal
Beta Ratio	1000

Dimensions

Outer Diameter	5.9 in151 mm
Height	13.5 in343 mm

Similar Part #'s
FBO 60357
FBO60357
SBFD-FBO-14Z10V
7644665
05613772
X70-09112
