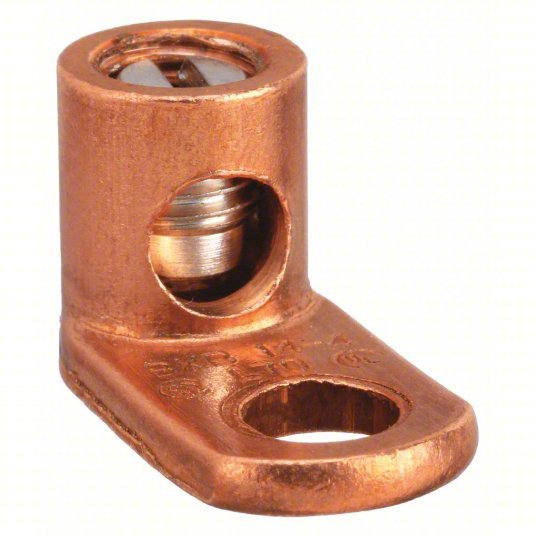

Blackburn L70 Mechanical Connector 1 Conductors, Copper, 9/32 in Stud Size
Original price
$5.15
-
Original price
$5.15
Original price
$5.15
$5.15
-
$5.15
Current price
$5.15
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, For Stud Size 9/32 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.28 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.66 in, Tongue Width 0.53 in, Tongue Thickness 0.09 in, Connector Type Compact
| Item | Mechanical Connector |
| Connector Type | Compact |
| No. of Conductors | 1 |
| Material | Electrolytic Copper |
| Head Style | Slotted |
| No. of Holes | 1 |
| Screw Material | Steel |
| Standards | UL Listed, UL486A/B |
| Body Material | Copper |
| Screw Finish | Zinc Plated |
| UL Standard | UL 486A-486B |
| For Conductor Material | Copper |
| Connection Orientation | Compact |
| Number of Terminations | 1 |
| Number of Conductors | 1 |
| Maximum Voltage | 1,000 V |
| Hole Spacing | Not Applicable |
| Maximum Operating Temperature | 194 Degrees F |
| Special Features | Cold Forged from Pure Electrolytic Copper With 99 Percent Conductivity |
| Tongue Thickness | 0.09 in |
| Type | Copper Connectors |
| Standard | UL E9809 |
| Insulation | None |
| Features | Cold forged from pure electrolytic copper with 99 percent conductivity |
