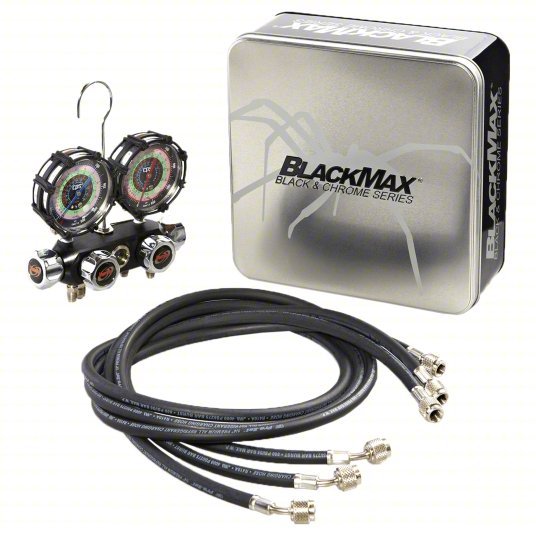

Blackmax MV4H4P5Z Manifold Gauge Set 4 Valves, 3 Hoses, Series BlackMax, 3 1/8 in Gauge

Manifold Gauge Set, Number of Valves 4, R-134A, R-22, R-404A, R-410A, Number of Hoses 3, 5 ft, 1.00, Anodized Aluminum (Body), Silicon (Dampening Cup), Essential Tools for Install/Service of Ductless Mini-Split A/C Units with 5/16 in (1/2 In.-20 UNF) Fittings, Includes Carrying Case

Number of Valves	4
Refrigerant Compatibility	R-134A, R-22, R-404A, R-410A
Number of Hoses	3
Hose Color	Black
Material	Anodized Aluminum (Body), Silicon (Dampening Cup)
Features	Essential Tools for Install/Service of Ductless Mini-Split A/C Units with 5/16 in (1/2"-20 UNF) Fittings
Body Material	Aluminum
Gauge Accuracy	1.00
Includes	Carrying Case
Includes Sightglass	Sightglass Included
Vacuum Port Connection Thread Direction	Right-Hand
Manifold Port Connection Thread Direction	Right-Hand
Display Illumination	Non-Illuminated
A2L Compatibility	Not A2L Compatible
Response Time	Instantaneous
Hose Connection Thread Direction	Right-Hand
Temperature Units Measured	Degrees F
Gauge Type	High Side/Low Side
High Side Display Pressure - Maximum	800 psi
High Side Display Pressure - Minimum	0 psi
For Refrigerant Type	R-134A, R-22, R-404A, R-410A
Product Type	Manifold Gauge Set
Accuracy	+/-1%
Manifold Port Connection Gender	Male
Low Side Display Pressure - Maximum	500 psi
Temperature Resolution	1 Degrees F
Vacuum Port Connection Gender	Female
Includes Vacuum Port	Vacuum Port Included
Includes Gauge Boots	Boots Included
Vacuum Port Connection Type	SAE
Display Type	Analog
Calibration Certificate Type	Not Certified
Pressure Units Measured	psi
Hose Connection Type	SAE
Series	BlackMax
Low Side Display Pressure - Minimum	30 in Hg
Pressure Resolution	0.1 psi
Manifold Port Connection Type	SAE
