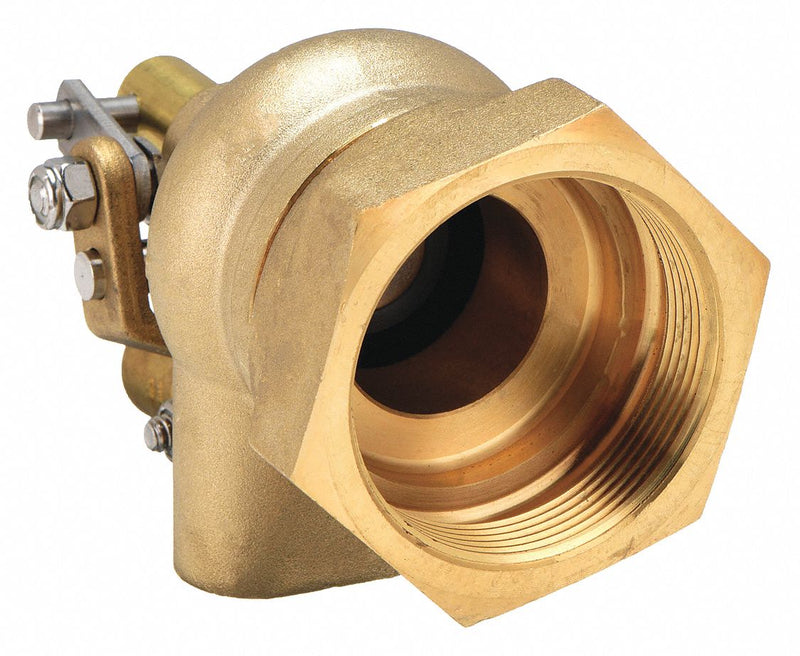

Bob R605T-1-1/2 Float Valve, Angle Brass Body, 1-1/2 in FNPT, Horizontal Piping
Original price
$181.11
-
Original price
$181.11
Original price
$181.11
$181.11
-
$181.11
Current price
$181.11
Float Valve, Mounting Horizontal Piping, Size 1 1/2 in, Connection Type FNPT, Rod Thread 3/8 In.-16, Rod Length Not Applicable, Rod Material Not Applicable, Body Material Brass, Valve Flow - Pressure (1) 65 psi, Valve Flow - Flow (1) 152 gpm, Valve Flow - Pressure (2) 85 psi, Valve Flow - Flow (2) 180 gpm, Max. Pressure 115 psi, Max. Temp. 180 Degrees F, Valve Material Brass, Float Material Not Applicable
| Pipe Size | 1 1/2" |
| Size | 1 1/2" |
| Connection Size - Side 1 | 1 1/2 in |
| Nominal Valve Size | 1 1/2 in |
| Connection Size - Side 2 | 1 1/2 in |
| Connection Type | FNPT |
| Body Material | Brass |
| Valve Flow - Pressure (1) | 65 psi |
| Max. Temp. | 180 Degrees F |
| Valve Flow - Flow (2) | 180 gpm |
| Rod Thread | 3/8 in -16 |
| Mounting | Horizontal Piping |
| Valve Flow - Flow (1) | 152 gpm |
| Valve Flow - Pressure (2) | 85 psi |
| Valve Material | Brass |
| Max. Pressure | 115 psi |
| Flow Rate | 112 gpm @ 35 psi, 152 gpm @ 65 psi, 180 gpm @ 85 psi |
| Maximum Pressure - Operating | 115 psi |
| Arm Adjustability | Adjustable |
| Includes Float and Rod | No Float and Rod |
| For Media | Water |
| Connection Gender - Side 1 | Female |
| Connection Type - Side 1 | NPT |
| Seal Material | Buna-N |
| Operating Temperature - Maximum | 180 Degrees F |
| Manufacturer Warranty | 1 yr |
| Valve Body Style | Angle |
| Seat Style | Single Seated |
| Operating Temperature - Minimum | 33 Degrees F |
| Valve Series | R605T High Turbo |
| Country of Origin | United States |
