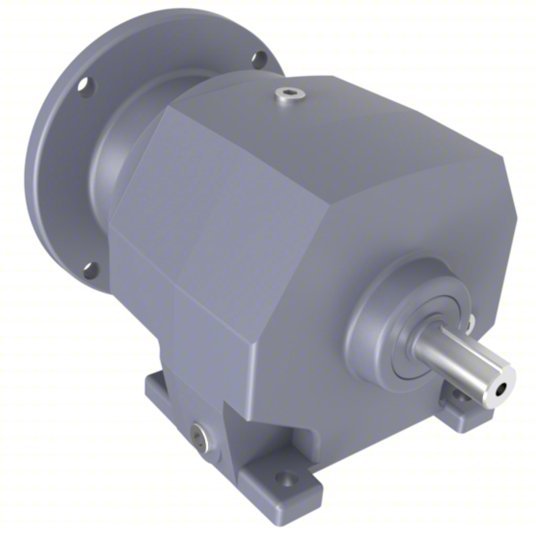

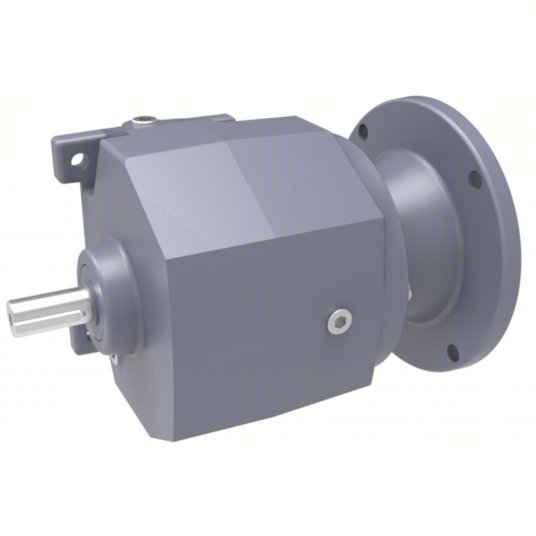

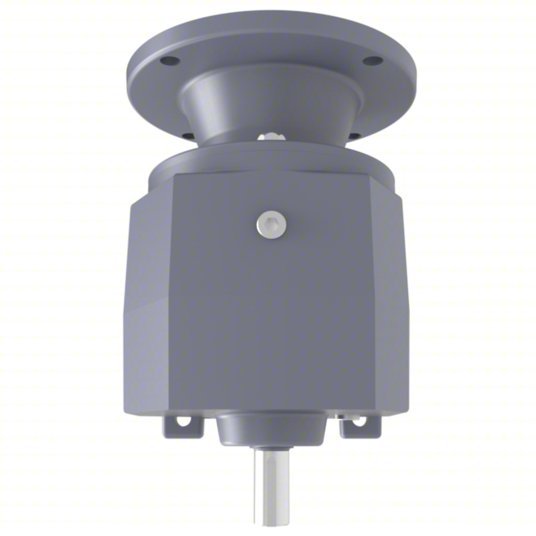

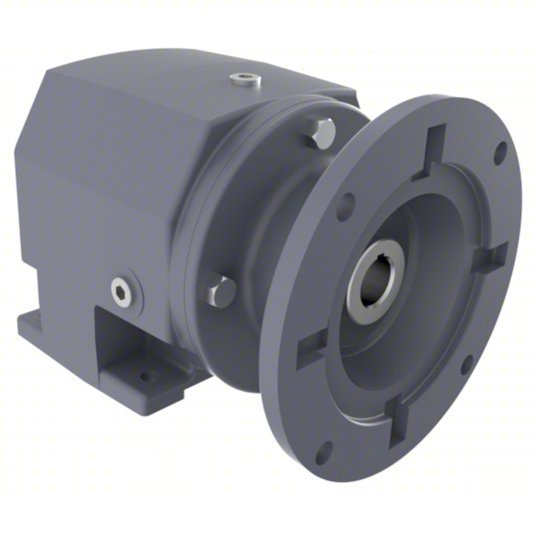

Boston Gear F842B-10K-B9-M1 Speed Reducer, C-Face, 180TC/210C, 10:1
Original price
$1,410.49
-
Original price
$1,410.49
Original price
$1,410.49
$1,410.49
-
$1,410.49
Current price
$1,410.49
Speed Reducer, Input Connection Type C-Face, Gear Type Helical, Output Shaft Type Round, Maximum Output Speed 175 RPM, Motor Frame Designation 180TC/210C, Base to Center 1.97 in, Gear Ratio 10:1, Rotation CW/CCW, Maximum Input Horsepower 3 hp, Maximum Output Torque 1006 in-lb, Overhung Load Capacity 525 ft-lb, Mounting Orientation Horizontal, Vertical, Bearing Type Ball, Maximum Input Speed 1,750 RPM, Gear Material Hardened and Ground Steel
| Item | Speed Reducer |
| Nominal Ratio | 10:1 |
| Input RPM | 1750 RPM |
| Nominal Output RPM | 175 RPM |
| Standards | BISSC Certified; AGMA Service Class I |
| Number of Stages | 1 |
| Single/Double Output/Universal | Single Output |
| Max. Output Torque | 1,006 in-lb |
| Solid/Hollow Output Shaft | Solid |
| Overhung Load | 525 lb |
| Mounting | Base |
| Max. Input HP | 3 hp |
| Pinion Material | Hardened Steel |
| Finish | Powdered Epoxy Paint |
| Shaft Orientation | Parallel Inline |
| Seal Type | Double Lip |
| Lubrication | Klubersynth UH1 6-460 |
| Gear Material | Hardened and Ground Steel |
| Output Torque @ 1/40 HP | 3600 in.-lb. |
| Gear Type | Helical |
| Frame | 180TC/210C |
| Rotation | CW/CCW |
| Housing Material | Cast Iron |
| Reducer Model No. | F842B-10K-B9 |
| Speed Reducer Type | C-Face |
| Bearings | Ball |
| Output Torque @ 4 HP | 1006 in-lb |
| Duty | Standard |
| Nominal Output rpm | 175 rpm |
| Motor Frame Designation | 180TC/210C |
| Overhung Load Capacity | 525 ft-lb |
| Housing Material Finish | Powder Coated Epoxy Paint |
| Bearing Type | Ball |
| Maximum Output Speed | 175 RPM |
| Output Shaft Type | Round |
| Maximum Output Torque | 1006 in-lb |
| Base to Center | 1.97 in |
| Gear Ratio | 10:1 |
| Maximum Input Speed | 1,750 RPM |
| Input Connection Type | C-Face |
| Mounting Orientation | Horizontal, Vertical |
| Maximum Input Horsepower | 3 hp |
