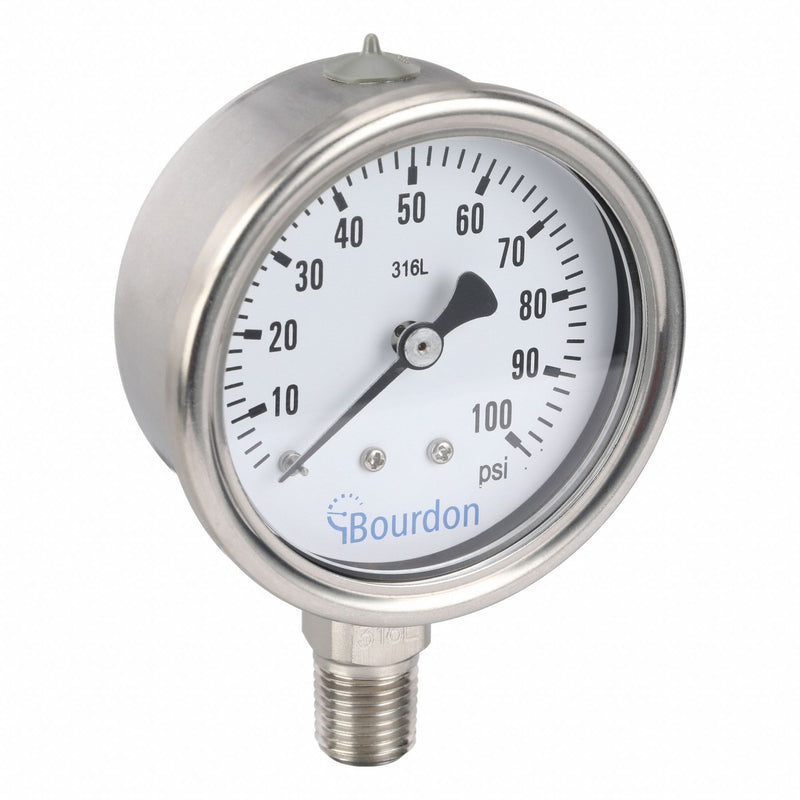

Bourdon MEX3-D50.H21/0133 Industrial Pressure Gauge, 0-100 psi, 2-1/2 in Dial, 1/4 in NPT Bottom, 316L Stainless Steel, IP65
Original price
$117.59
-
Original price
$117.59
Original price
$117.59
$117.59
-
$117.59
Current price
$117.59
Pressure Gauge, Accuracy +/-1.60 Percent, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, Dry Dampening Feature Not Applicable, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No, Panel-Mountable No, Socket Material 316L Stainless Steel, Sensor Material 316L Stainless Steel, Accuracy Grade EN 837-1, Series MEX3
| Accuracy | +/-1.60% |
| Process Connection Location | Bottom |
| Process Connection Type | NPT |
| Application | Industrial |
| Gauge Case Material | 304 Stainless Steel |
| Series | MEX3 |
| Lens Material | Polycarbonate |
| Primary Pressure Range | 0 to 100 |
| Primary Scale Units | psi |
| IP/NEMA Rating | Not Rated |
| Liquid-Filled Case | No |
| Hazardous Location Rating | Not Rated |
| Panel-Mountable | No |
| Blowout Safety Back | No |
| Gauge Socket Material | 316L Stainless Steel |
| Range | 0 to 100 psi |
| Includes | Vent Plug |
| Gauge Lens Material | Plastic |
| Graduations | 10 psi |
| Gauge Sensor Material | 316L Stainless Steel |
| Gauge Secondary Range Values | -100 to 0 |
| Gauge Primary Range Units | psi |
| Calibration Certificate Included | No |
| Gauge Secondary Range Units | Bar |
| Gauge Primary Range Values | 0 to 100 |
| Liquid Filled | No |
| Gauge Connection Location | Bottom |
| Case Color | Metallic |
| Gauge Connection Type | MNPT |
| Gauge Primary Range Numbered Graduations | 2 |
| Gauge Special Options | Field Liquid Fillable |
| Gauge Primary Range Smallest Graduation | 10 |
| For Use With | Industrial Applications, Media Compatible |
| Gauge Case Color | Polished Stainless Steel |
| Connection Location | Lower |
| Gauge Accuracy | +/-1.60% |
| Operating Temp. Range | -4 Degrees to 158 Degrees F |
| Characteristics | Crimped Bezel |
| Smallest Graduation | 2 psi |
| Case Material | Stainless Steel |
| Socket Material | 316L Stainless Steel |
| Standards | ATEX Ex II 2 GDc-IM2c, EN 837-1 |
| Connection Type | MNPT |
| Removable Bezel | No |
| Pressure Range Type | Compound |
| Sensor Material | 316L Stainless Steel |
| Field Fillable | No |
| Includes Vent Plug | Yes |
| Bezel Mounting Type | Crimped |
| Dial Color | White |
| Non-Sparking | Yes |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Accuracy Grade | EN 837-1 |
| Process Connection Gender | Male |
| IP Rating | IP65 |
| Operating Temperature Range | -4 Degrees to 158 Degrees F |
