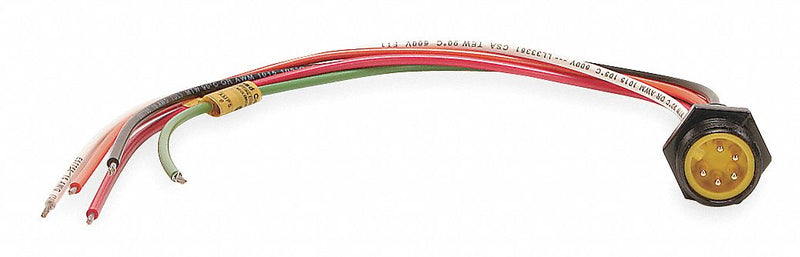

Brad Harrison 1R5006A20A120 Mini-Change Receptacle, 5 Pin Male, 7/8-16 Coupling, 600V 8A, IP68, 1 ft Wire
Original price
$31.86
-
Original price
$31.86
Original price
$31.86
$31.86
-
$31.86
Current price
$31.86
External Thread Receptacle, Number of Pins 5, Plug or Connector Type Male, Straight Plug End, Max. Voltage 600V AC/DC, Max. Current 8 A, Wire Size 16 AWG, Threads 7/8-16, Face Dia. 0.55 in, Keyway Single, Body Material Die-Cast Zinc, Color Yellow, NEMA Rating 6P, IP Rating IP67, Wire Length 1 ft, Standards CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed
| Product Type | External Thread Receptacle |
|---|---|
| End 1 Number of Pins | 5 |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Gray |
| IP Rating | IP68 |
| Max. Amps | 8 A |
| Maximum Operating Temperature | 221 Degrees F |
| Body Material | Die-Cast Zinc |
| Standards | CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed |
| Plug End | Straight |
| Max. Voltage | 600V AC/DC |
| NEMA Rating | 6P |
| Color | White, Red, Green, Orange, Black |
| Plug or Connector Type | Male |
| Keyway | Single |
| Threads | 7/8-16 |
| Features | Gold Over Nickel-Plated Contacts |
| Temp. Range | -4 Degrees to 221 Degrees F |
| Voltage - Maximum | 600V AC/DC |
| Orientation | Straight |
| Temperature Range - Operating | -20°C to +105°C |
| Current - Maximum per Contact | 8.0A |
| Poles | 5 |
| Wire/Cable Type | UL 1015 |
| Material - Component | Zinc Die-Cast with Black Epoxy |
| Gender | Male |
| Coupling Type | External Thread |
| UL | E152210 |
| CSA | LR6837 |
| AC Voltage Rating - Maximum | 600 V |
| NEMA Enclosure Rating | 6 |
| Series | 130013 |
| Number of Keyways | 1 |
| DC Voltage Rating - Maximum | 600 V |
| Operating Temperature - Minimum | -4 Degrees F |
| Connection Color | Black |
| Mounting Thread Type | NPT |
| Mounting Style | Panel |
| Country of Origin | Mexico |
