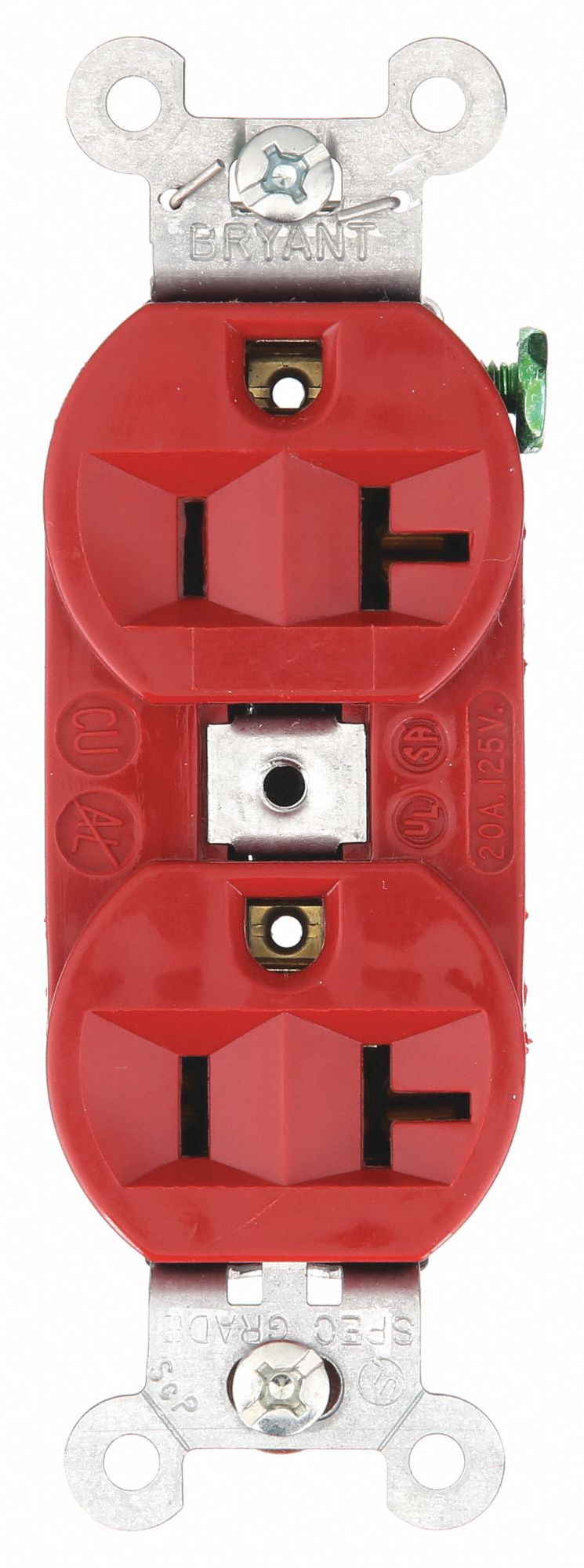

Bryant 5362BRED Straight Blade Receptacle, Duplex, 5-20R, 20A, 125V AC, Red
Original price
$11.21
-
Original price
$11.21
Original price
$11.21
$11.21
-
$11.21
Current price
$11.21
Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Red, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Corrosion Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
| Receptacle Type | Duplex |
|---|---|
| NEMA Receptacle Configuration | 5-20R |
| Current Rating | 20 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Housing Color | Red |
| Mount Type | Flush |
| Standards | CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186 |
| Resistance Properties | Corrosion Resistant |
| Flange Type | Non-Flanged |
| NEMA Configuration | 5-20 |
| Sub-Category | Duplex Receptacles |
| Number of Gangs | 1 |
| Outlet Type | Duplex |
| Application Environment | Industrial |
| Material | Nylon |
| HP | 1 hp |
| Includes | Mounting Hardware |
| For Location | Indoor |
| Polarized | Yes |
| Maximum Operating Temperature | 167 Degrees F |
| Minimum Operating Temperature | -40 Degrees F |
| Connection Orientation | Straight |
| Application | Heavy Duty Specification Grade |
| Series | Heavy Duty |
| Country of Origin | United States |
