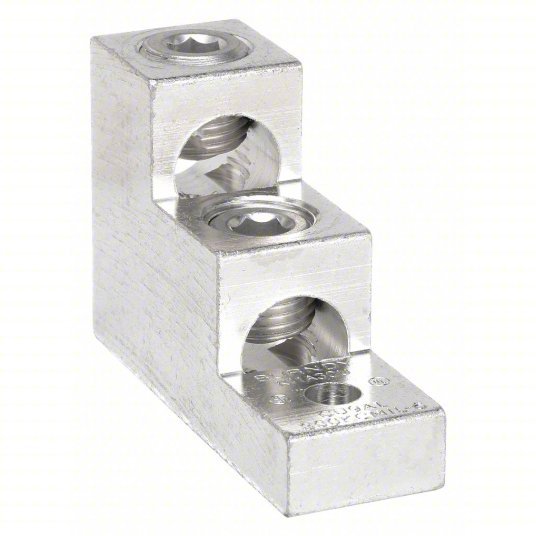

Burndy K11A30U Mechanical Connector 2 Conductors, Aluminum, 5/16 in Stud Size
Original price
$59.26
-
Original price
$59.26
Original price
$59.26
$59.26
-
$59.26
Current price
$59.26
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 300 kcmil, For Stud Size 5/16 in, Head Style Hex, Number of Holes 1, Hole Diameter 0.33 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Length 0.94 in, Tongue Width 1 in, Tongue Thickness 0.31 in
| Connector Type | Terminal |
| No. of Conductors | 2 |
| Material | Tin-Plated Aluminum |
| No. of Holes | 2 |
| Standards | CSA Certified, UL Listed |
| Head Style | Hex |
| Body Material | Aluminum |
| Torque | 275 in-lb |
| Tongue Thickness | 0.31 in |
| Connection Orientation | Dual Rated Lug |
| Hole Spacing | Not Applicable |
| For Conductor Material | Aluminum, Copper |
| Special Features | Providing Low Contact Resistance |
| Maximum Voltage | 600 V |
| Number of Terminations | 2 |
| Contact Finish | Tin |
| Maximum Operating Temperature | 194 Degrees F |
| Number of Conductors | 2 |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Type | Bolted Lugs & Terminals |
| Certification - CSA Approved | No |
| Physical Attribute - Screw Type | Allen |
| Installation Torque Recommended in-lb | 275 LBS/in |
| Plating Type | Tin plated |
| Certification - UL Listed Direct Burial | No |
| Hex Key | 44989 |
| Physical Attribute - Number of Holes | 1 |
| UL Listed | Yes |
| Application | For Aluminum And Copper Conductors |
| Standards - Industry Standards Met | UL468A-468B |
| Item Type | 3A |
| Plated | Y |
| Rating - Minimum Voltage | 600 |
| Industry Standard(s) | UL468A-468B |
| Temperature Rating | 194 |
| Material - Hardware | Aluminum |
| Conductor Type | AL C Str-SizeCU C Str-SizeCU C Solid-Size |
