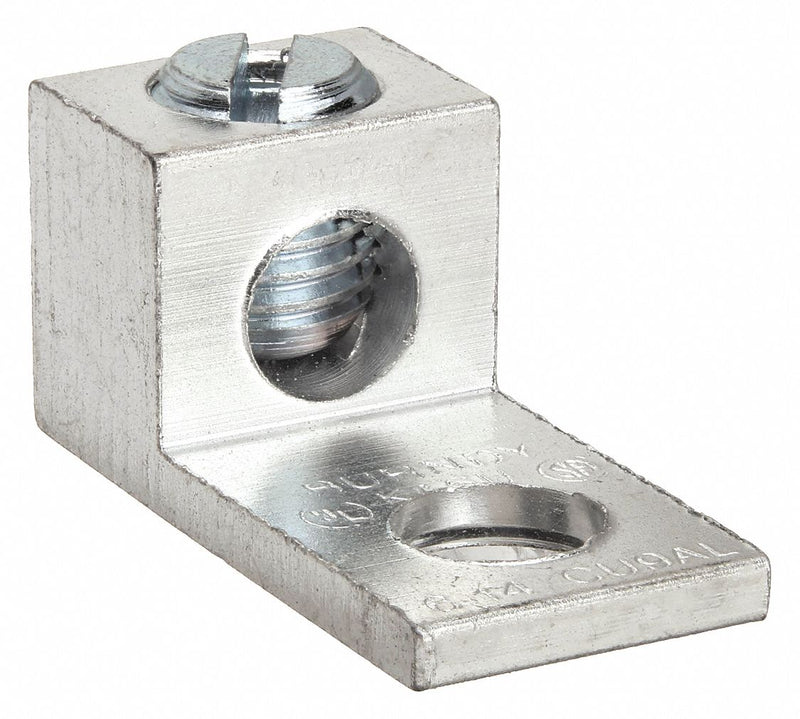

Burndy KA6U Mechanical Connector, For Wire Size 14 AWG – 6 AWG, 1 Wire Terminations, For Stud Size 1/4 in
UPC: 781810559079 | Harmonization / Schedule B : 8535.90.8020
Country of Origin: Mexico | Shipping Weight: 0.01 lbs
Original price
$3.28
-
Original price
$3.28
Original price
$3.28
$3.28
-
$3.28
Current price
$3.28
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.27 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.63 in, Tongue Width 0.5 in, Tongue Thickness 0.09 in
| For Minimum Wire Size | 14 AWG |
|---|---|
| For Maximum Wire Size | 6 AWG |
| For Stud Size | 1/4 in |
| Hole Diameter | 0.27 in |
| Tongue Width | 0.50 in |
| Length | 1.06 in |
| Max. Conductor Size | 6 AWG Stranded |
| Min. Conductor Size | 14 AWG Stranded |
| Stud Size | 1/4 in |
| Width | 0.51 in |
| Length (Straight Wireway) | 1.06 in |
| Overall Depth | 1/2 in |
| Overall Length | 1.06 in |
| For Stranded Copper Wire Size - Maximum | 6 AWG |
| Overall Width | 0.51 in |
| Tongue Length | 0.63 in |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Tongue Thickness | 0.09 in |
| Conductor Size | 14-6 AWG |
| Dimension - Bolt Size fraction | 2023-01-04 |
| Conductor - Copper Str Size Range | 14 AWG-6 AWG |
| Dimension - Stud Size inch | 44930 |
| Dimension - Bolt Hole Size inch | 0.25 in |
| Dimension - Length Overall inch | 1.06 in |
| Dimension - Width inch | 0.50 in |
| Dimension - Hole Size mm | 7 mm |
| Dimension - Height inch | 0.51 in |
| Dimension - Hole Size inch | 0.27 in |
| Dimension - L Length Overall mm | 27 mm |
| Conductor - AL Str Size Range | 8 AWG-6 AWG |
| Conductor - Copper Str Size | 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG |
| Dimension - D inch | 0.63 in |
| Dimension - Width fraction | 1/2 in |
| Dimension - N inch | 0.25 in |
| Dimension - Width mm | 13 mm |
| Conductor - AL Str Size | 8 AWG;6 AWG |
| Conductor - Nominal Diameter | 0.072, 0.091, 0.116, 0.130, 0.146, 0.164, 0.184, 0.184, 0.184 |
| Dimension - Pad Width inch | 0.50 in |
| Wire Rope Length | 1.06 in |
| Connector Type | Lug |
| For Conductor Material | Aluminum, Copper |
| Number of Conductors | 1 |
| Number of Terminations | 1 |
| Number of Holes | 1 |
| Body Material | Aluminum |
| Contact Finish | Tin |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 194 Degrees F |
| Standards | CSA Certified, UL Listed |
| No. of Conductors | 1 |
| Material | Tin-Plated Aluminum |
| Head Style | Slotted |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Special Features | Providing Low Contact Resistance |
| Torque | 35 in-lb |
| Type | Bolted Lugs & Terminals |
| Physical Attribute - Number of Holes | 1 |
| Industry Standard(s) | UL468A-468B |
| Plating Type | Tin |
| Plated | Y |
| UL Listed | Yes |
| Application | For Aluminum And Copper Conductors |
| Installation Torque Recommended in-lb | 35 |
| Certification - CSA Approved | No |
| Physical Attribute - Screw Type | Slot |
| Certification - UL Listed Direct Burial | No |
| Material - Hardware | Steel |
| Conductor Type | CU C Str-SizeCU C Solid-Size |
| Physical Attribute - Number of Screws | 1 |
| Rating - Minimum Voltage | 600 |
| CAD Available | Yes |
| Connection Orientation | Dual Rated Lug |
| Country of Origin | Mexico |
