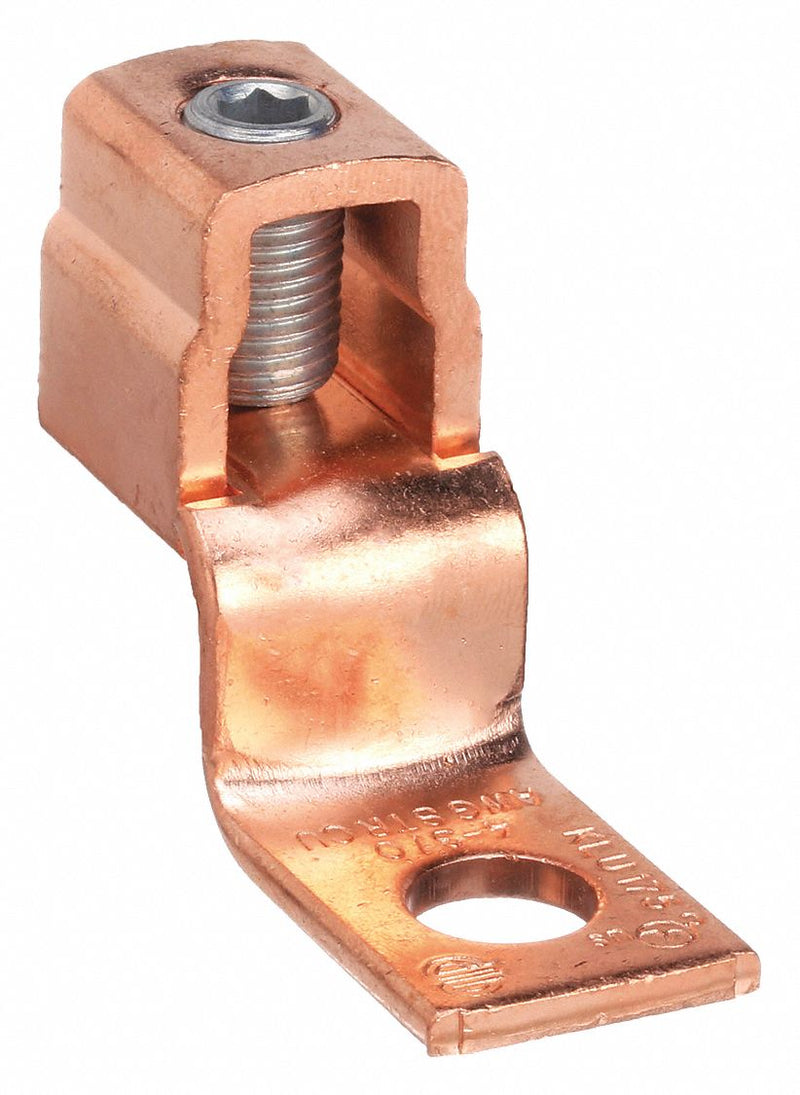

Burndy KLU175 Mechanical Connector, 4 AWG – 3/0 AWG Wire Sizes, 3/8 in Stud Size, Unplated Copper Lug Body
Original price
$26.37
-
Original price
$26.37
Original price
$26.37
$26.37
-
$26.37
Current price
$26.37
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, For Stud Size 3/8 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.39 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Width 0.75 in, Tongue Thickness 0.16 in
| For Minimum Wire Size | 4 AWG |
|---|---|
| For Maximum Wire Size | 3/0 AWG |
| For Stud Size | 3/8 in |
| Hole Diameter | 0.39 in |
| Tongue Width | 0.75 in |
| Width | 0.78 in |
| Max. Conductor Size | 3/0 AWG Stranded |
| Min. Conductor Size | 4 AWG Stranded |
| Stud Size | 3/8 in |
| Length | 2.2 in |
| Length (Straight Wireway) | 2.2 in |
| For Stranded Copper Wire Size - Maximum | 3/0 AWG |
| Overall Depth | 3/4 in |
| For Stranded Copper Wire Size - Minimum | 4 AWG |
| Overall Width | 0.74 in |
| Strip Length | 1 in |
| Tongue Thickness | 0.16 in |
| Overall Length | 2.2 in |
| Conductor Size | 4-3/0 AWG |
| Dimension - B Length fraction | 22/31 in |
| Dimension - Hole Size inch | 0.39 in |
| Dimension - Bolt Size fraction | 2023-03-08 |
| Dimension - Stud Size inch | 44993 |
| Dimension - B Length inch | 0.71 in |
| Dimension - Screw Size inch | 44993 |
| Dimension - L Length Overall mm | 56 mm |
| Dimension - Length Overall inch | 2.20 in |
| Conductor - Copper Str Size Range | 4 AWG-3/0 AWG |
| Dimension - Pad Width inch | 0.75 in |
| Dimension - N inch | 0.43 in |
| Conductor - Copper Str Size | 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Strip Length inch | 1 in |
| Wire Rope Length | 2.2 in |
| For Conductor Material | Copper |
| Number of Conductors | 1 |
| Number of Terminations | 1 |
| Number of Holes | 1 |
| Body Material | Copper |
| Contact Finish | Unplated |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 194 Degrees F |
| Standards | cULus Listed, UL Listed |
| Material | Copper |
| No. of Conductors | 1 |
| Head Style | Hex |
| Torque | 120 in-lb |
| Color | Bare |
| Compatible with Product Type | Copper Cable |
| Special Features | Easy Installation, Long Lasting Reliable Contact |
| Type | Bolted Lugs & Terminals |
| Installation Torque Recommended in-lb | 120 |
| Plating Type | Unplated |
| Physical Attribute - Number of Screws | 1 |
| Certification - CSA Approved | No |
| Conductor Type | CU C Str-Size |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar |
| Plated | N |
| Physical Attribute - Number of Holes | 1 |
| UL Listed | No |
| Trade Name | SCRULUGâ„¢ |
| Industry Standard(s) | UL467 |
| Certification - cULus | Yes |
| Hardware Type | 3/8 UNF Socket/HexScrew |
| Physical Attribute - Screw Type | Allen |
| Connector Type | Terminal |
| Connection Orientation | Offset Tang |
| Wire Color | Bare |
| Country of Origin | India |
