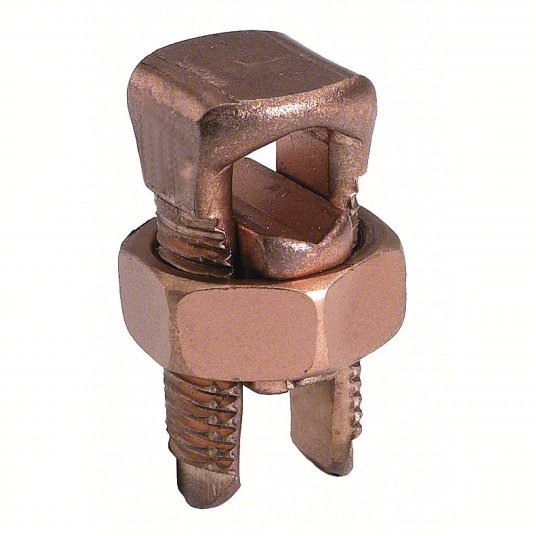

Burndy KS15 Split-Bolt Connector Copper, Square Head Head

Split-Bolt Connector, Body Finish Unplated, Body Material Copper, For Conductor Material Copper, For Minimum Run Wire Size 10 AWG, For Maximum Run Wire Size 8 AWG, For Minimum Tap Wire Size 10 AWG, 14 AWG, For Maximum Tap Wire Size 8 AWG, Head Style Square Head, Hex Nut Size 0.5 in, Maximum Voltage 35,000 V, Torque 165 in-lb, Overall Length 0.85 in, Overall Width 0.38 in, RoHS Compliant Yes, Standards CSA Certified, UL 486A, UL 486B, UL 486D, Connects Copper to Copper Wire

Connects	Copper to Copper Wire
Wire Range w/Equal Main and Tap (AWG)	10 str to 8 str
Min. Tap Conductor w/1 Max. Main (AWG)	14 str
Material	Copper Alloy
Pressure Bar Material	Copper
Standards	CSA Certified, UL 486A, UL 486B, UL 486D
Head Style	Square Head
Minimum Tap Conductor w/1 Maximum Main (AWG)	14 str
For Conductor Material	Copper
Maximum Voltage	35,000 V
Special Features	Compact, High-Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Cracking And Corrosion
Torque	165 in-lb
RoHS Compliant	Yes
Body Material	Copper
Body Finish	Unplated
Item Type	3A
Conductor - Copper Str Run	10 AWG;9 AWG;8 AWG
Conductor Type	CU C Solid-RunCU C Str-RunCU Weld C Solid-RunCU Weld C Str-RunCU C Str-TapCU Weld C Solid-TapCU Weld C Str-TapCU C Solid-Tap
Conductor - CopperWeld Str Run Range	#8
Conductor - Copper Str Tap Range	10 STR - 8 STR
Conductor - Copper Solid Tap	8 AWG
UL Listed	Yes
Standards - Industry Standards Met	UL486UL467CSA C22.2 No 41
Conductor - Copper Str Run Range	10 STR - 8 STR
Conductor - Copper Solid Tap Range	14 AWG-8 AWG
Certification - UL Listed Direct Burial	Yes
Conductor - CopperWeld Solid Tap Range	#8
Trade Name	SERVIT ®
Conductor - CopperWeld Str Run	#8
Plating Type	Unplated
Connector Type	Split Bolt
Conductor - Copper Str Tap	14 AWG;12 AWG;10 AWG;9 AWG;8 AWG
Conductor - Copper Solid Run	8 AWG
Industry Standard(s)	UL486UL467CSA C22.2 No 41
Conductor - CopperWeld Solid Tap	#8
Installation Torque Recommended in-lb	80 in-lbs
Type	KS, Compact
Conductor - Copper Solid Run Range	10 AWG-8 AWG
Application	For Direct Burial Applications In Earth Or Concrete, Copper
