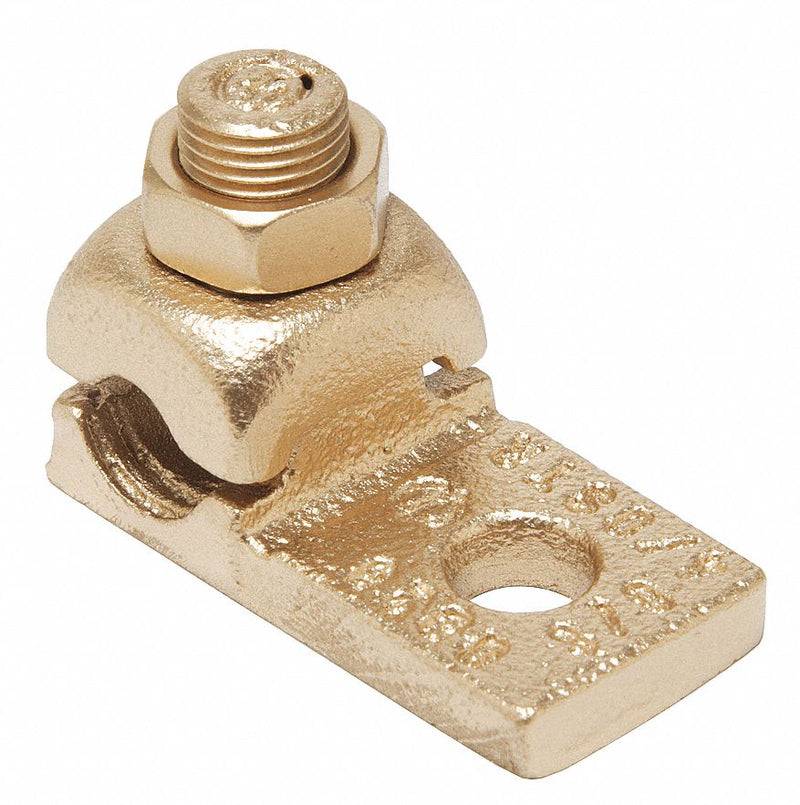

Burndy QA8CB Mechanical Lug, Copper, 14-8 AWG, 1 Hole, #10 Stud
Original price
$46.66
-
Original price
$46.66
Original price
$46.66
$46.66
-
$46.66
Current price
$46.66
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, For Stud Size #10, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.22 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.56 in, Tongue Width 0.56 in, Tongue Thickness 0.16 in, Connector Type Terminal
| No. of Conductors | 1 |
|---|---|
| Number of Holes | 1 |
| Material | Copper |
| Standards | UL Listed |
| Body Material | Copper |
| Head Style | Hex |
| Maximum Voltage | 600 V |
| For Conductor Material | Copper |
| Contact Finish | Unplated |
| Torque | 75 in-lb |
| Special Features | Heavy Duty, Joining A Wide Range Of Cable |
| Number of Conductors | 1 |
| Number of Terminations | 1 |
| Compatible with Product Type | Copper Cable |
| Maximum Operating Temperature | 194 Degrees F |
| Type | Bolted Lugs & Terminals |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bars |
| Plating Type | Unplated |
| Industry Standard(s) | UL468A-468B |
| Installation Torque Recommended in-lb | 75 LBS/in |
| Trade Name | QIKLUG |
| Country of Origin | Mexico |
