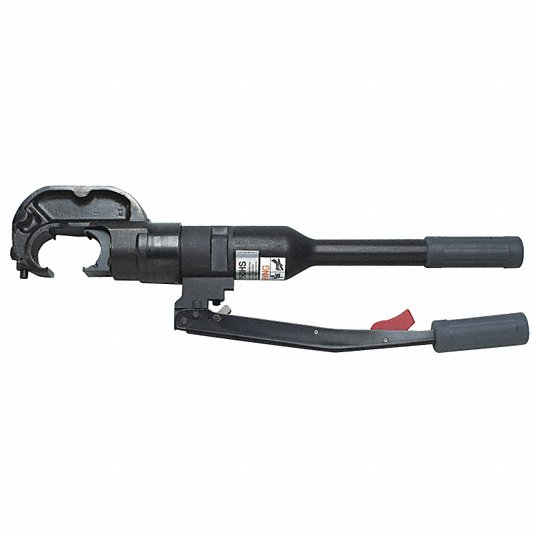

Burndy Y750HSXT Hypress C-Head Compression Lugs/Compression Splices, 12 ton, 24 in Overall Lg

Hypress C-Head, Crimper Style C-Head Crimper, Compatible Connector Type Compression Lugs, Compression Splices, Compatible Terminal Type Aerial Cable, Minimum Compatible Wire Size 8 AWG, Maximum Compatible Wire Size 750 kcmil, Maximum Crimping Force 12 ton, Tool Length 24 in, Insulated No, Crimping Capacity - Aluminum Lug 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4 AWG, 4/0 AWG, 500 kcmil, 6 AWG, 750 kcmil, 8 AWG

For Use With	Tension sleeves, Taps, Aerial cables, Terminals and splice, Compression connectors
Max. Crimping Force (Tons)	12.0
Crimping Force (Lbs.)	24000
Application	Crimping
Max. Crimping Force	24,000 lb
Type	Commercial
Standards	RoHS Compliant
Includes	Plastic Case
Crimper Style	C-Head Crimper
Crimping Capacity - Copper Lug	1 AWG, 1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4/0 AWG, 500 kcmil, 6 AWG, 750 kcmil, 8 AWG, 4 AWG
Grip Style	Standard Cushion
Maximum Jaw Opening	1 5/8 in
Minimum Crimping Capacity - Copper Lug	14 AWG
Compatible Cable Type	Aerial Cable
Minimum Crimping Capacity - Aluminum Lug	8 AWG
Insulated	No
Includes Crimping Die	No
Compatible Terminal Type	Aerial Cable
Maximum Crimping Capacity - Copper Lug	750 kcmil
Compatible Connector Type	Compression Lugs, Compression Splices
Crimping Capacity - Aluminum Lug	1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4 AWG, 4/0 AWG, 500 kcmil, 6 AWG, 750 kcmil, 8 AWG
Tool Weight	17.2 lb
Maximum Crimping Force	12 ton
Maximum Crimping Capacity - Aluminum Lug	750 kcmil
