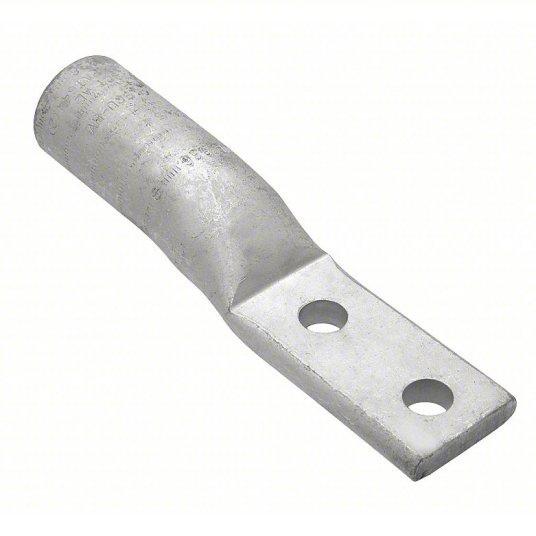

Burndy YA28A5 Two-Hole Lug Compression Connector 4/0 AWG Max Wire Size, 1/2 in Stud Size, 1 5/8 in Strip Lg

Burndy YA28A5 Two-Hole Lug Compression Connector 4/0 AWG Max Wire Size, 1/2 in Stud Size, 1 5/8 in Strip Lg

$52.64 - $52.64
$52.64
$52.64 - $52.64
$52.64
Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code White, Die Code 298, Tongue Angle Straight, Tongue Width 1.17 in, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole No, Hole Center to Center 1.75 in, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
Material Aluminum
Color Code White
Item Two-Hole Lug Compression Connector
Peep Hole No
Hole Center to End 0.63 in
Standards CSA Certified, UL 486A-486B, UL Listed
Die Code 298
Plate Material Electro Tin
Lug Compression Connector Type Two-Hole Lug Compression Connector
Tongue Style Standard
Hole Center to Center 1.75 in
Special Features Ensure the Transformer Feeders and Taps are Terminated Properly, Terminal to Bus Connections are Made Using Proper Hardware Resulting in True Torque to Pressure Performance, Compensates for Dissimilar Metal Expansion and Contraction, Dual Rated Compression Terminals
RoHS Compliant Yes
For Conductor Material Aluminum, Copper
Tongue Thickness 0.3 in
Termination Style Crimp
Maximum Voltage 35 kV AC
Maximum Operating Temperature 194 Degrees F
Inspection Hole No
For Wire Type Stranded
Contact Finish Tin
Barrel Style Chamfered
Tongue Angle Straight
