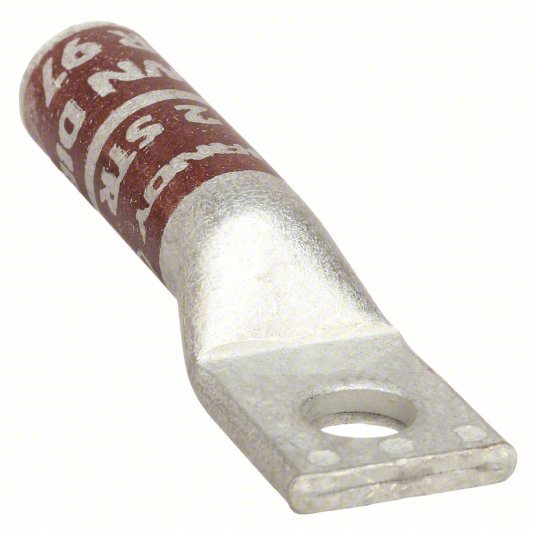

Burndy YA2C One-Hole Lug Compression Connector 2 AWG Max Wire Size, 5/16 in Stud Size, HYLUG

One-Hole Lug Compression Connector, Barrel Size Long, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.6 in, For Conductor Material Copper, For Stud Size 5/16 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed

Connector Type	Long Barrel
Material	Copper
Color Code	Brown
Peep Hole	No
Plate Material	Electro Tin
Hole Center to End	0.34 in
Item	One-Hole Lug Compression Connector
Standards	CSA Certified, UL 486A-486B, UL Listed
Die Code	10
Tongue Style	Standard
Application	For Code Conductor
Tongue Angle	Straight
Contact Finish	Tin
Maximum Voltage	35 kV AC
For Wire Type	Stranded
RoHS Compliant	Yes
Special Features	Non-Insulated Construction
Maximum Operating Temperature	194 Degrees F
Barrel Style	Chamfered
Inspection Hole	No
For Conductor Material	Copper
Termination Style	Crimp
Physical Attribute - Tongue Type	Standard
Standards - Industry Standards Met	UL468A-468B
Plated	Y
Industry Standard(s)	UL468A-468B
Voltage Rating	35 kV
Feature - Barrel Type	Long
Temperature Rating	194
Rating - Minimum Voltage	600
Rating - KVA	35 kV
Physical Attribute - Tongue Angle	Straight
UL Listed	Yes
Feature - Barrel Style	Chamfered
Physical Attribute - Number of Holes	1
Trade Name	HYLUG
Plating Type	Tin - Electro Plated
Die Index	10
Finish Type	Tin-Plated
Voltage - Maximum	35000
Conductor Type	CODE
Type	Long Barrel, Tin Plated
Conductor - Material	Copper
Certification - CSA Approved	Yes
