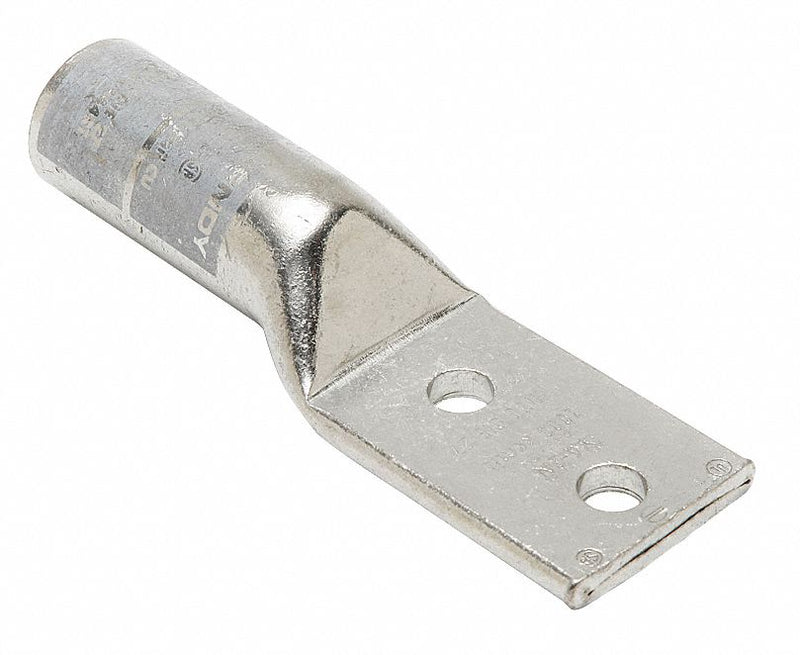

Burndy YA442N Compression Lug, For 1000 kcmil, Stranded Wire, 1/2 in Stud Size, Long, Copper Barrel
UPC: 781810555644 | Harmonization / Schedule B : 8535.90.8020
Country of Origin: United States | Shipping Weight: 1.6 lbs
Original price
$221.26
-
Original price
$221.26
Original price
$221.26
$221.26
-
$221.26
Current price
$221.26
Compression Lug, Barrel Size Long, Color Code White, Die Code 27, Tongue Angle Straight, Tongue Width 2.19 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 1000 kcmil, For Stranded Copper Wire Size - Maximum 1000 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
| For Wire Size | 1000 kcmil |
|---|---|
| For Stud Size | 1/2 in |
| Barrel Size | Long |
| Tongue Width | 2.19 in |
| Length | 7.14" |
| Barrel Length | Long |
| Width | 2.19" |
| Cable Size | 1000 kcmil |
| Overall Width | 2.19 in |
| Overall Length | 7.14 in |
| Length (Straight Wireway) | 7.14 in |
| Tongue Thickness | 0.32 in |
| Hole Size | 0.56 in |
| Barrel Outside Diameter | 1.5 in |
| For Stranded Copper Wire Size - Maximum | 1000 kcmil |
| Tongue Length | 1.27 in |
| Strip Length | 3 1/16 in |
| For Stranded Copper Wire Size - Minimum | 1000 kcmil |
| Dimension - Strip Length inch | 3-1/16 in |
| Conductor - Copper Str Size | 1000 kcmil |
| Dimension - Bolt Size fraction | 1/2 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Pad Width inch | 2.19 in |
| Dimension - Stud Size fraction | 1 to 2 |
| Dimension - Z inch | 0.64 in |
| Dimension - Hole Size fraction | 1 to 2 |
| Conductor - Copper Str Size Range | 1000 kcmil |
| Dimension - Stud Size inch | 1/2 in |
| Dimension - Bolt Size inch | 0.5 |
| Dimension - N inch | 0.63 in |
| Dimension - L Length Overall mm | 181 mm |
| Dimension - B Length fraction | 3 in |
| Dimension - Outside Diameter inch | 1.50 in |
| Dimension - Length Overall inch | 7.14 in |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - B Length inch | 3.00 in |
| Conductor Size | 1000 KCMIL |
| Wire Rope Length | 7.14 in |
| For Conductor Material | Copper |
| Material | Copper |
| Tongue Angle | Straight |
| Inspection Hole | No |
| Die Code | 27 |
| Color Code | White |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Tongue Style | Standard |
| Connector Type | Long Barrel |
| Plate Material | Electro Tin |
| Hole Center to End | 0.63 in |
| Hole Center to Center | 1.75 in |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Peep Hole | No |
| Application | For Code Conductor |
| Barrel Style | Chamfered |
| For Wire Type | Stranded |
| Maximum Operating Temperature | 194 Degrees F |
| Special Features | Terminal |
| Contact Finish | Tin |
| Maximum Voltage | 35 kV |
| RoHS Compliant | Yes |
| Termination Style | Crimp |
| UL Listed | Yes |
| Feature - Barrel Style | Chamfered |
| Certification - CSA Approved | Yes |
| Finish Type | Tin-Plated |
| Physical Attribute - Tongue Type | Standard |
| Industry Standard(s) | UL468A-468B |
| Conductor - Material | Copper |
| Temperature Rating | 194 |
| Die Index | 27 |
| Type | Long Barrel, Tin Plated |
| Feature - Barrel Type | Long |
| Voltage Rating | 35 kV |
| Rating - Minimum Voltage | 600 |
| Physical Attribute - Number of Holes | 2 |
| Plating Type | Tin |
| Plated | Y |
| Rating - KVA | 35 kV |
| Trade Name | HYLUGâ„¢ |
| Conductor Type | CODE |
| Voltage - Maximum | 35000 |
| Physical Attribute - Tongue Angle | Straight |
| Number of Holes | 1 |
| Country of Origin | United States |
