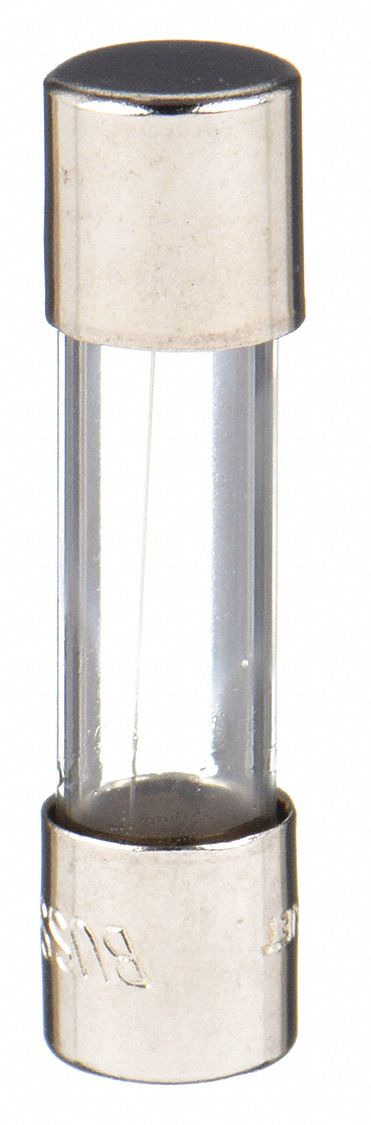

Bussmann GMC-3-R Glass Fuse, GMC Series, Time-Delay, 3 A, 250V AC, 5mm x 20mm, PK 5
Original price
$33.60
-
Original price
$33.60
Original price
$33.60
$33.60
-
$33.60
Current price
$33.60
Fuse, 3 A, 250 V AC, GMC Series, Glass Fuse, Time-Delay, Body Style Cylindrical, Non-Rejection, Interrupt Rating 100A at 250V AC, 10kA at 125V AC, Fuse Size 20mm L x 5mm dia, Length 20 mm, Diameter 5 mm, Equivalent Brand and Series Bussmann GMC, Littelfuse 239, Mersen GSC, Equivalent Series 239, GMC, GSC, Body Material Glass, Compatible Fuse Block Series HTB, Single Element, Standards CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX, Package Quantity 5
| Series | GMC |
|---|---|
| Speed | Time-Delay |
| Amps | 3A |
| AC Voltage Rating | 250V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100A at 250V AC, 10kA at 125V AC |
| Body Style | Cylindrical |
| Body Material | Glass |
| Equivalent Brand and Series | Bussmann GMC, Littelfuse 239, Mersen GSC |
| Compatible Fuse Block Series | HTB |
| Fits Fuse Block Style | Nonrejection |
| DC Voltage Rating | 32V DC |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Standards | CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX |
| Fuse Holder Code | E |
| Element | Single |
| In Line Fuseholder | E |
| Functionally Equal To | Littelfuse 239, Mersen/Ferraz Shawmut GSC |
| Equivalent Series | 239, GMC, GSC |
| Connection Type | Ferrule End x Ferrule End |
| Weight | 0.002 lb |
| Current | 3 A |
| Country of Origin | China |
