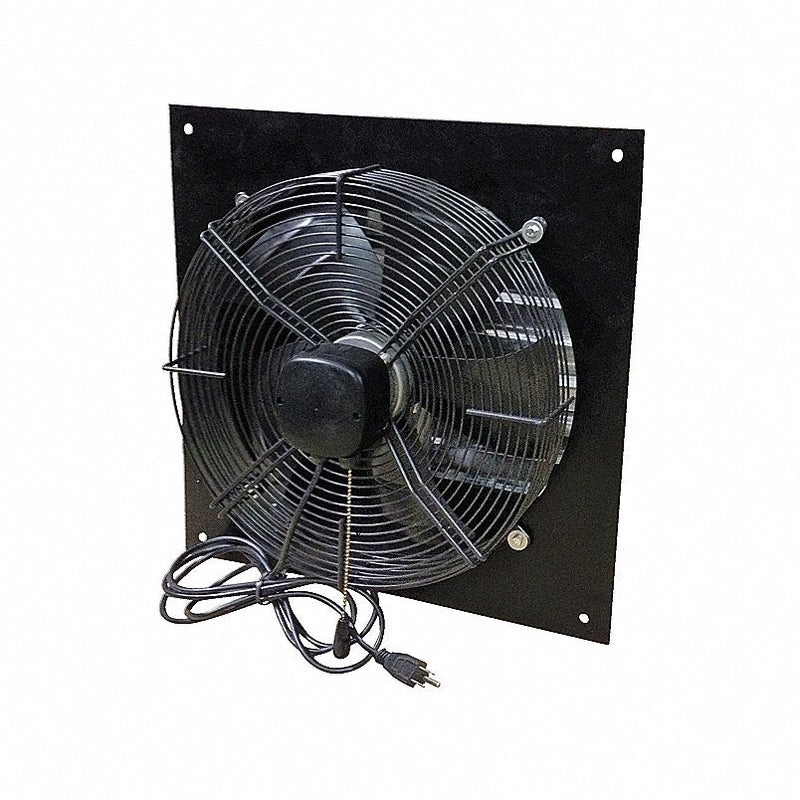

Canarm XFS12 Shutter Mount Exhaust Fan, 12", 3 Speed, 1100/900/800 cfm
Original price
$299.49
-
Original price
$299.49
Original price
$299.49
$299.49
-
$299.49
Current price
$299.49
Shutter Mount Exhaust Fan, Assembled Assembled, Blade Diameter 12 in, Blade Material Steel, Control Type Pull Chain, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 1,100 cfm, For Cut-Out Height 14 in, For Cut-Out Width 14 in, For Maximum Wall Thickness 5 in, For Minimum Wall Thickness 5 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Powder Coated, Guard Material Steel, Guard Type Intake, Housing Material Steel
| Exhaust/Supply Fan Item | Exhaust Fan |
| Number of Speeds | 3 |
| Fan Voltage | 115V AC |
| CFM @ 0.000-In. SP | 1100/900/800 |
| Exhaust/Supply Fan Motor HP | 1/12 hp |
| Square Opening Required | 14 in |
| Standards | ETL |
| Thermal Protection | yes |
| Frame Material | Steel |
| Frame Finish | Black Powder Coated |
| Max. Ambient Temp. | 40 Degrees C |
| Item | Shutter Mount Exhaust Fan |
| Number of Blades | 5 |
| Guard Material | Steel |
| Speed Control Item Number | CN5041 |
| Full Load Amps | 0.8/0.8/0.7 |
| Hz | 60 |
| Wire Guard Finish | Powder Coated |
| Motor Insulation | Class A |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Type | Outside Rotor Motor |
| Voltage | 115V |
| Phase | 1 |
| Drive Package Included | No |
| Includes | 9 ft Power Cord with 115V 3-Prong Plug, Aluminum Shutters, Pull Chain Switch, Wire Guard |
| Blade Material | Steel |
| Bearing Type | Sealed Ball |
| Nameplate Voltage | 115V AC |
| Noise Level @ 0.100 in SP @ 5 ft | 8 sones |
| Supply Airflow @ 0.000 in SP | 1,100 cfm |
| Vent Design | Ductless |
| Ventilation Type | Exhaust |
| Exhaust Airflow @ 0.100 in SP | 1,100 cfm |
| For Maximum Wall Thickness | 5 in |
| Exhaust Airflow @ 0.125 in SP | 1,100 cfm |
| Noise Level @ 0.000 in SP @ 5 ft | 8 sones |
| Guard Type | Intake |
| Includes Motor | Yes |
| Housing Material | Steel |
| Wattage | 92 W |
| Guard Finish | Powder Coated |
| Maximum Exhaust Airflow @ 0.000 in SP | 0 to 2000 cfm |
| For Minimum Wall Thickness | 5 in |
| Frequency | 60 Hz |
| Number of Fans | 1 |
| Maximum Noise Level | 8 sones |
| Full Load Current | 0.8 A |
| Exhaust Airflow @ 0.000 in SP | 1,100 cfm |
| Fan Style | Shutter-Mounted |
| Speed Controllable | Yes |
| Maximum Noise Level @ 0.000 in SP @ 5 ft | 7.1 to 8.0 sones |
| Nominal Voltage | 115V AC |
| Maximum Airflow | 1,100 cfm |
| Control Type | Pull Chain |
| Includes Grill | No |
| Assembled | Assembled |
| Drive Type | Direct Drive |
| Motor Horsepower | 1/12 hp |
| Maximum Ambient Operating Temperature | 194 Degrees F |
| Motor Enclosure Design | Totally Enclosed Air-Over (TEAO) |
| Includes Dehumidistat | No |
| Duct Shape | Not Applicable |
| Electrical Connection | Plug-In |
| Housing Finish | Powder-Coated |
| Motor Speed | 1,600 RPM |
| Method of Construction | Stamped |
| Package Quantity | 1 |
