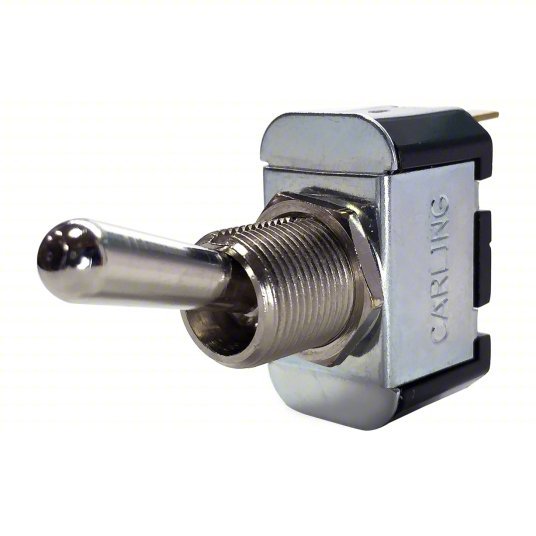

Carling 6FC54-73 Toggle Switch, SPDT, 3 Connections, Momentary On/Off/Momentary On, 3/4 hp, 10A @ 250V AC
Original price
$5.85
-
Original price
$5.85
Original price
$5.85
$5.85
-
$5.85
Current price
$5.85
Toggle Switch, Contact Form SPDT, Number of Connections 3, Switch Function Momentary On/Off/Momentary On, AC Contact Rating 10 A @ 250 V, 15 A @ 125 V, HP 3/4 hp, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating Not Rated, Actuator Length 0.68 in, Stem Length 0.47 in, Stem Dia. and Thread Size 0.470 in, Special Features #6-32NC-2 Thread, Includes Hex Nut, Ring Nut
| Switch Function | Momentary On/Off/Momentary On |
| Contact Form | SPDT |
| HP | 3/4 hp |
| Actuator Style | Bat |
| Amps | 10A @ 250VAC, 15A @ 125VAC |
| Number of Connections | 3 |
| Terminals | Screw |
| Item | Toggle Switch |
| Mounting Hole | 0.50 in dia |
| Special Features | #6-32NC-2 Thread |
| AC Contact Rating | 10 A @ 250 V, 15 A @ 125 V |
| Includes | Hex Nut, Ring Nut |
| DC Contact Rating | Not Rated |
| IP Rating | Not Rated |
| Product Type | Toggle Switch |
| Series | F |
| Horsepower | 3/4 hp |
| Operator Illumination Style | Non-Illuminated |
| Switch Function Configuration | Momentary On/Off/Momentary On |
| Operating Temperature - Minimum | 0 Degrees F |
| Operating Temperature - Maximum | 150 Degrees F |
| Number of Positions | 3 |
| Terminal Connection Type | Screw Terminals |
| Features | Not Sealed |
| Actuator Material | Metal |
| Number of Poles | 1 |
| NEMA Enclosure Rating | No Enclosure |
