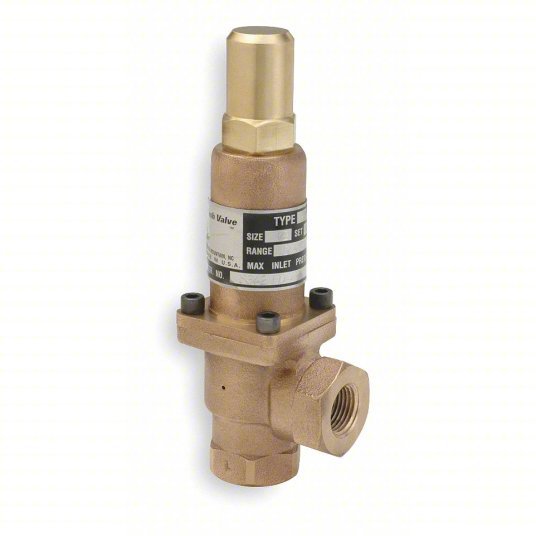

Cash Value K10AWA01-E3-0100 Adjustable Back Pressure Relief Valve FNPT x FNPT, 1/4 in x 1/4 in, Bronze
Original price
$446.59
-
Original price
$446.59
Original price
$446.59
$446.59
-
$446.59
Current price
$446.59
Adjustable Back Pressure Relief Valve, Body Material Bronze, Inlet Type FNPT, Outlet Type FNPT, Inlet Size 1/4 in, Outlet Size 1/4 in, Factory Set Pressure 75 psi, Disc Material Metal, Overall Height 5 1/4 in, Application Pump systems, hydraulic systems, oil burningequipment, rams, presses and lifts, chemicalsprocesses, waste treatment, desalination andcar washes, Overall Length 2 1/2 in, Seat Material Bronze, Spring Material Stainless Steel, Temp. Range 40 Degrees to 450 Degrees F
| Outlet Type | FNPT |
| Inlet Type | FNPT |
| Disc Material | Metal |
| Seat Material | Bronze |
| Factory Set Pressure | 75 psi |
| Temp. Range | 40 Degrees to 450 Degrees F |
| Spring Material | Stainless Steel |
| Test Lever | No |
| Application | Liquids |
| Standards | ASME Section IV, CRN, CSA |
| Type | K Series |
| Product Type | Pressure Relief Valve |
| Operating Temperature - Minimum | 40 Degrees F |
| Outlet Connection Gender | Female |
| Outlet Connection Type | NPT |
| Operating Temperature - Maximum | 450 Degrees F |
| Inlet Connection Gender | Female |
| Inlet Connection Type | NPT |
| For Media | Oil, Water |
| ASME Section Code | Non-Code |
