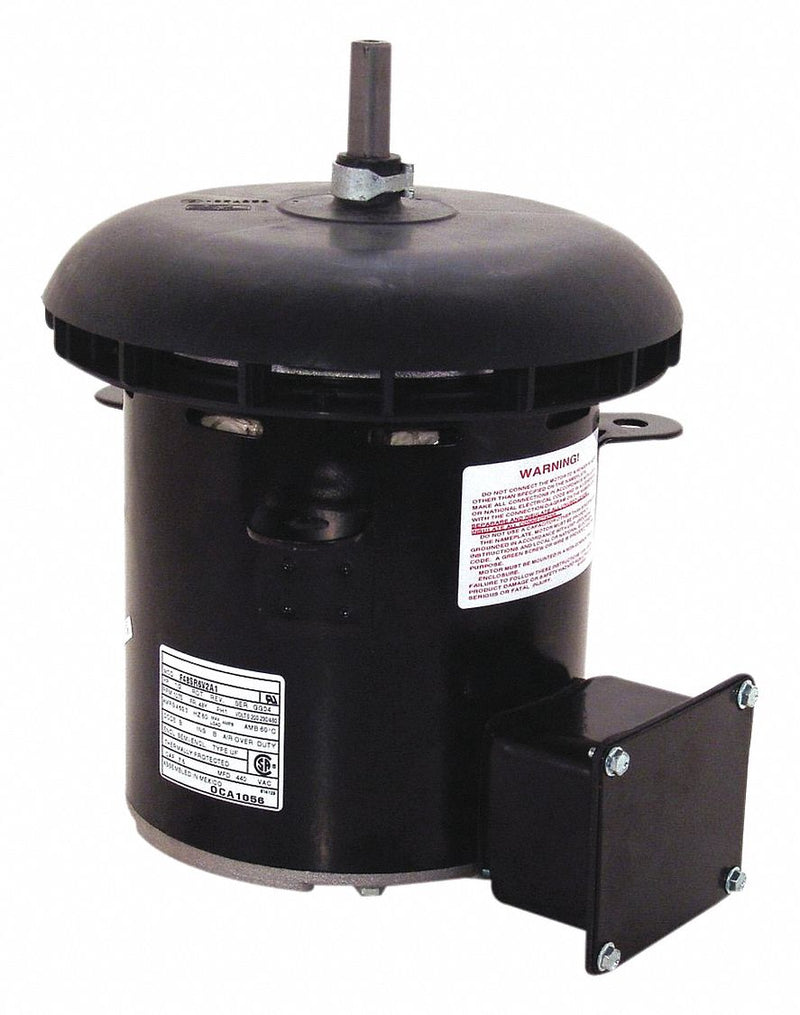

Century OCA1056 Condenser Fan Motor, 1/2 HP, 1075 RPM, 200-230/460V AC, Carrier/BDP OEM Replacement
Original price
$867.05
-
Original price
$867.05
Original price
$867.05
$867.05
-
$867.05
Current price
$867.05
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 200-230/460V AC, Full Load Amps 4.6/2.3 A, 48Y Frame, OEM Replacement Brand Carrier/BDP, Replacement For 230, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
| Motor Design | Permanent Split Capacitor |
|---|---|
| Phase | Single |
| HP | 1/2 |
| RPM Range | 1,001-1,100 |
| No. of Speeds | 1 |
| Voltage | 200-230/460V AC |
| Motor Shaft Rotation | CW/CCW |
| Frame | 48Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Lug |
| Motor Sub Application | Condenser Fan |
| Hz | 60 |
| Motor Thermal Protection | Auto |
| Capacitor Required | 2MDY7 |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC, 208-230/460V AC, 208V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC |
| Motor Shaft Design | Flat |
| Replacement For | 230 |
| Nameplate RPM | 1,075 |
| Max. Ambient Temp. | 60 Degrees C |
| Standards | CSA Certified, UL Recognized |
| Motor Application | OEM Replacement |
| Duty | Continuous |
| Motor Service Factor | 1 |
| Ins. Class | B |
| OEM Replacement Brand | Carrier/BDP |
| Application | Carrier/BDP |
| Motor Bearings | Ball |
| Number of Shafts | 1 |
| Full Load Amps | 4.6/2.3 A |
| Weight | 21 lb |
| Usable @ 208V | Usable at 208V |
| Motor Mounting Position | Vertical Shaft Down |
| Usable @ 200V | Usable at 200V |
| Motor Frame Material | Steel |
| Rotation | CW/CCW |
| Features | OEM Replacement for Carrier/BDP |
| Mounting | Lug |
| Number of Speeds | 1 |
| Country of Origin | India |
