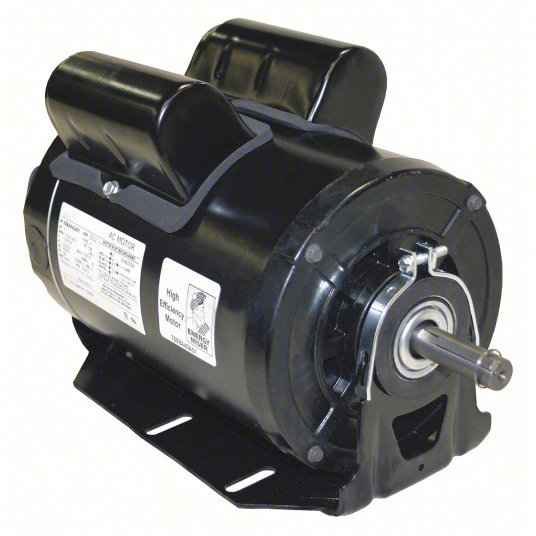

Century PD6104AV2 Agricultural Fan Motor 1, 1,725 Nameplate RPM, 115/230V AC, 56, Auto, Keyed, Cradle Base

Century PD6104AV2 Agricultural Fan Motor 1, 1,725 Nameplate RPM, 115/230V AC, 56, Auto, Keyed, Cradle Base

$771.88 - $771.88
$771.88
$771.88 - $771.88
$771.88
Agricultural Fan Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.0/4.5 A, 56 Frame, Usable @ 208V Yes, Usable @ 200V Yes, 60/50 Hz Hz, Motor Service Factor 1.3, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal
Motor Design Capacitor-Start/Run
Phase Single
HP 1
RPM Range 1,701-1,800
Voltage 115/230V AC
Frame 56
Motor Service Factor 1.3
Motor Thermal Protection Auto
Motor Enclosure Design Totally Enclosed Air-Over
Nameplate RPM 1,725
Motor Application Farm Duty
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Cradle Base
Motor Shaft Design Keyed
Motor Sub Application Belt Drive Fan/Blower
Motor Shaft Rotation CW/CCW
Standards CSA Certified, UL Recognized
Duty Continuous
Ins. Class B
Capacitor Required Yes
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Max. Ambient Temperature 40 Degrees C
Frame Material Rolled steel
Hz 60/50 Hz
Motor Bearings Ball
Full Load Amps 9.0/4.5 A
Item - Farm Duty Motors Agricultural Fan Motor
Finish Enamel
Includes Gasketed Wiring Compartment Cover
No. of Speeds 1
Weight 42 lb
Duty Cycle Continuous
Full Load Amps @ 50Hz 9.0/4.5 A
Usable @ 200V Yes
RPM @ 50Hz 1,425
Voltage @ 50Hz 230V AC
Max. Ambient Temp. 40 Degrees C
HP @ 50Hz 1
Usable @ 208V Yes
Application Replacement Use in Agricultural Exhaust Fans
