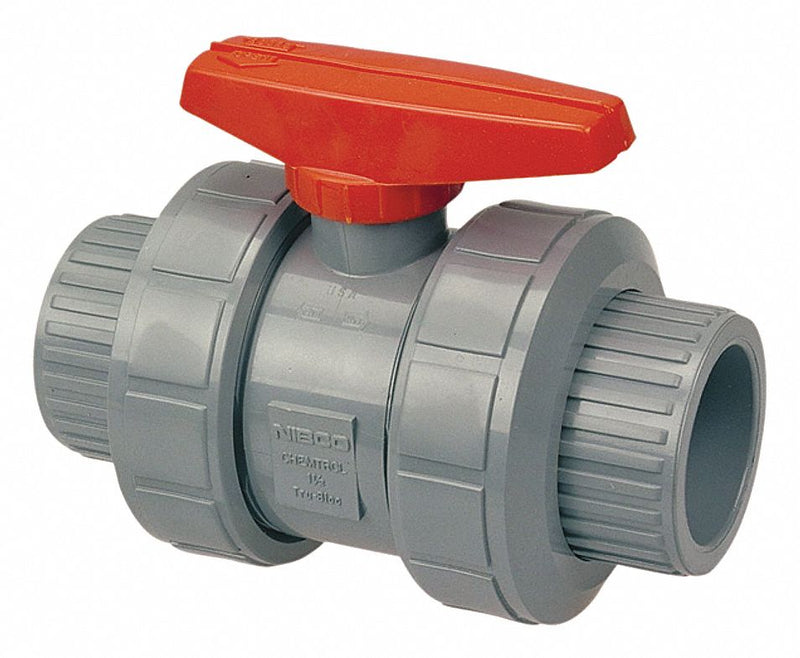

Chemtrol S51TB-V 3 Manual Two-Way Ball Valve, 3 in, CPVC, Socket x Socket, Full Port, Inline True Union, NSF 61
Original price
$1,200.20
-
Original price
$1,200.20
Original price
$1,200.20
$1,200.20
-
$1,200.20
Current price
$1,200.20
Manual Two-Way Ball Valve, Body Material CPVC, For Media Water, Valve Construction Three-Piece, Nominal Valve Size 3 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Maximum Pressure - Operating 150 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Ball Material CPVC, Ball Port Style Full Port, Handle Type Lever, Connection Size - Side 1 3 in
| Ball Material | CPVC |
|---|---|
| Body Material | Plastic (CPVC) |
| Body Style | Inline True Union |
| Ball Port Style | Full Port |
| Valve Ways | 2-Way |
| Valve Structure | Three-Piece |
| For Media | Water |
| Connection Type | Socket x Socket |
| Stem Material | CPVC |
| Handle Type | Lever |
| Handle Material | PVC |
| Seat Material | PTFE |
| Seal Material | FKM |
| Standards | ASTM F1970, NSF/ANSI Standard 14 |
| Compliance | Annex G, ASTM F1970, NSF/ANSI Standard 14, NSF/ANSI Standard 61 |
| NSF Certifications for Food and Drinking Water | NSF 61 |
| Nominal Valve Size | 3 in |
| Pipe Schedule Compatibility | Schedule 80 |
| Max. Pressure | 150 PSI CWP |
| Temp. Range | 73 Degrees to 210 Degrees F |
| Color - Valve Body | Gray/Orange |
| Color - Valve Handle | Orange |
| Features | Engineered with a self-adjusting seat and upstream and downstream blocking capability to stop flow when an alternate union is removed for servicing the piping system |
| Green Certification | NSF(R) Certified (Sustainability or Environmental Standard) |
| Restrictions | Restricted for conveying or dispensing water for potable use (human consumption). |
| Country of Origin | United States |
