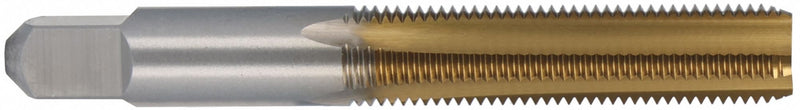

Chicago-Latrobe 305236 Straight Flute Tap, 1/4 in-28 UNF, H3 / 2B, 4 Flute, Bottoming Chamfer
Original price
$19.41
-
Original price
$19.41
Original price
$19.41
$19.41
-
$19.41
Current price
$19.41
Straight Flute Tap, Thread Size 1/4 In.-28, UNF, Bottoming, Overall Length 2.5 in, High Speed Steel, TiN, Right Hand, Thread Length 1 in, 75 Percent Thread Drill Size 5.45 mm, Thread Limit H3, Class of Fit 2B
| Tap Material | High Speed Steel |
| Tap Chamfer | Bottoming |
| Tap Style | Straight Flute (Hand) |
| Number of Flutes | 4 |
| Thread Direction | Right Hand |
| Number of Pieces | 1 |
| Tap Thread Type | UNF |
| Standards | USCTI Table 302A |
| List Number | HTGP-TN |
| Tap Grouping | Tap |
| Tap Finish | TiN |
| Cutting Direction - Machining | Right Hand |
| Series | HTGP-TN |
| Shank Type - Machining | Straight |
| Primary Material Application ISO Code | K, M, P |
