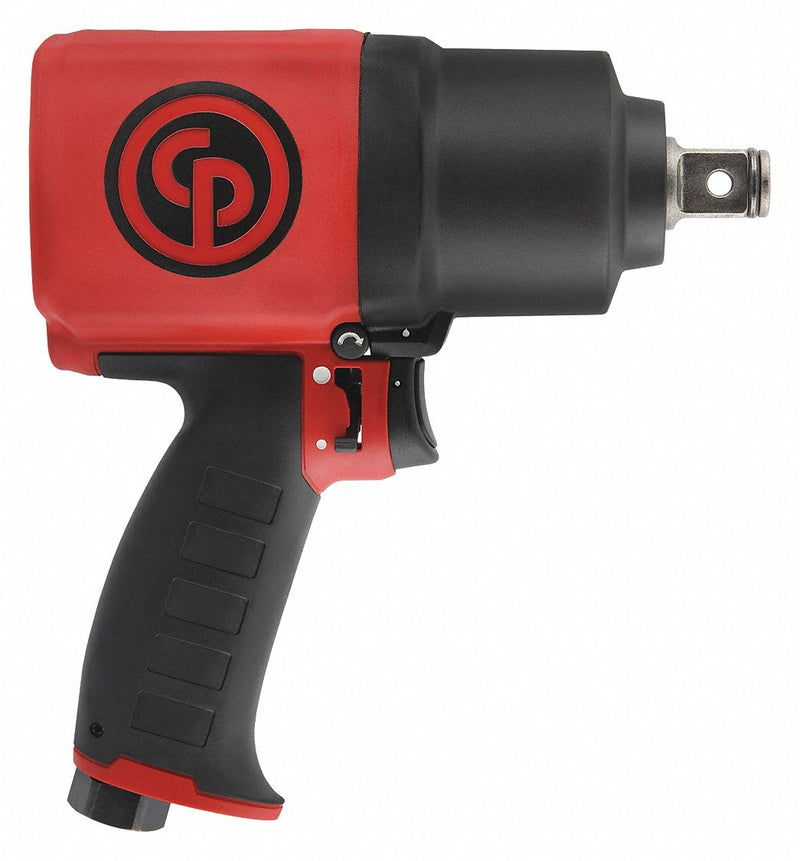

Chicago Pneumatic CP7769 Air Impact Wrench, Compact, 3/4 in Drive, Pistol-Grip, Square, Std, Medium Duty
UPC: 015451779610 | Harmonization / Schedule B : 8467.11.5040
Country of Origin: Taiwan | Shipping Weight: 8.15 lbs
Original price
$968.81
-
Original price
$968.81
Original price
$968.81
$968.81
-
$968.81
Current price
$968.81
Impact Wrench, Power Source Air Powered, Air Consumption 41 cfm, Air Inlet 3/8 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating General Duty, Breakaway Torque 1,440 ft-lb, Fastening Torque 1,080 ft-lb, Free Speed 6,500 RPM, Impact Rated Yes, Impact Sound Level 108 dB, Impacts per Minute 1,200, Number of Speed Settings 3, Power to Weight Ratio 208.7 ft-lb/lb, Max. Bolt Capacity 1/2 in
| Drive Size - Air Tools | 3/4" Square |
|---|---|
| Overall Length | 7 7/8 in |
| Anvil Length - Air Impacts | 1.000" |
| Air Inlet Size - Air Tools | 3/8" NPT |
| Min. Hose Size | 1/2 in |
| Drive Size | 3/4 in |
| Hose Size - Minimum | 1/2 in |
| Air Inlet Connection Size | 3/8 in |
| Wire Rope Length | 7 7/8 in |
| Length | 7 7/8 in |
| MFR # | CP7769 |
| Zoro # | G1620919 |
| UPC # | 015451779610 |
| Country of Origin | Taiwan, Province of China |
| Free Speed | 6,500 RPM |
| Air Inlet | 3/8 in NPT |
| Handle Type | Pistol-Grip |
| Max. Bolt Capacity | 1/2 in |
| Body Style - Air Tools | Pistol |
| Retainer Type - Air Impacts | Ring / Thru Hole |
| Duty Cycle - Air Tools | General Duty |
| Handle Material | Composite |
| Max. Torque | 1440 ft.-lb. |
| Anvil Type - Air Impacts | Standard |
| Torque Range | 300 to 1440 ft.-lb. |
| Tool Weight | 6.9 lb |
| Housing Material | Composite |
| Item - Air Impact Wrenches | Air Impact Wrench |
| Average CFM @ 15 Second Run Time | 10.20 |
| Retainer Type | Friction Ring, Through Hole |
| Blows per Minute - Air Tools | 1200 |
| Required Pressure | 90 psi |
| CFM @ Full Load | 40.7 |
| Features | 360 Degrees Swivel Air Inlet, One-Hand Power Adjustment, One-Hand Reverse System, Variable Speed Trigger |
| Power to Weight Ratio | 208.7 ft-lb/lb |
| Air Consumption | 41 cfm |
| Breakaway Torque | 1,440 ft-lb |
| Duty Rating | General Duty |
| Exhaust Location | Bottom |
| Built-In Light | No |
| Vibration Level | 13 m/sq sec |
| Impact Sound Level | 108 dB |
| Impacts per Minute | 1,200 |
| Drive Type | Standard |
| Impact Rated | Yes |
| Min. Air Pressure | 90 psi |
| Standards | EN ISO 11148-6:2013, ISO 15744, ISO-28927-2 |
| Number of Speed Settings | 3 |
| Clutch Style | Twin Hammer |
| Tool Style | Compact |
| Power Source | Air-Powered |
| Max. Air Pressure | 90 psi |
| Fastening Torque | 1,080 ft-lb |
| Air Pressure | 90 psi |
| Air Inlet Type | NPT |
| Air Pressure - Maximum | 90 psi |
| Frequency of Use | Maintenance to Light Production |
| Drive Shape | Square |
| Air Pressure - Minimum | 90 psi |
| Bolt Capacity - Maximum | 1 in |
| Tool Life | Long Lasting |
| Power Source - TS Only | Air-Powered |
| Power Source - old | Air-Powered |
| Country of Origin | Taiwan (subject to change) |
