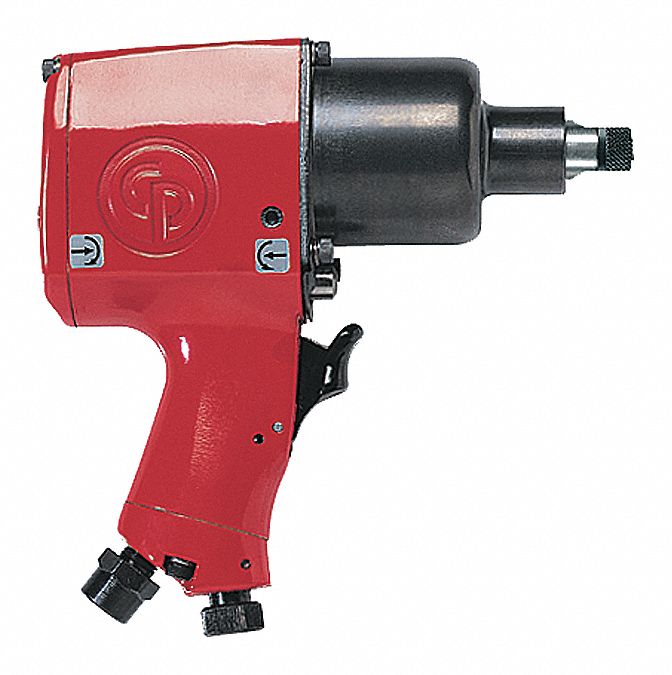

Chicago Pneumatic CP9542 Air Impact Wrench, 1/2 in Drive, Compact Pistol-Grip, 320 ft-lb Torque, 450 ft-lb Breakaway, Pin Detent
Original price
$550.79
-
Original price
$550.79
Original price
$550.79
$550.79
-
$550.79
Current price
$550.79
Impact Wrench, Power Source Air Powered, Air Consumption 13 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Min. Hose Size 3/8 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 450 ft-lb, Fastening Torque 320 ft-lb, Free Speed 8,900 RPM, Impact Sound Level 100 dB, Impacts per Minute 1,100, Number of Speed Settings 3, Power to Weight Ratio 81.8 ft-lb/lb, Max. Bolt Capacity 1/2 in.
| Tool Style | Compact |
| Style | Pistol Grip |
| Handle Type | Pistol Grip |
| Handle Material | Aluminum |
| Housing Material | Steel |
| Square Drive Size | 1/2" |
| Drive Type | Standard |
| Retainer Type | Pin Detent |
| Clutch Style | Pin Clutch |
| Max. Bolt Capacity | 1/2 in |
| Torque Range | 25 to 320 ft-lb |
| Fastening Torque | 320 ft-lb |
| Max. Torque | 450 ft-lb |
| Breakaway Torque | 450 ft-lb |
| Free Speed | 8,900 RPM |
| Blows per Minute | 1,100 |
| Impacts per Minute | 1,100 |
| Number of Speed Settings | 3 |
| Air Pressure | 90 psi |
| Air Consumption | 13 cfm |
| Average CFM @ 15 Second Run Time | 3.20 |
| CFM @ Full Load | 13.0 |
| Air Inlet | 1/4 in NPT |
| Min. Hose Size | 3/8 in |
| Exhaust Location | Bottom |
| Built-In Light | No |
| Impact Sound Level | 100 dB |
| Vibration Level | 5.5 m/s² |
| Power to Weight Ratio | 81.8 ft-lb/lb |
| Tool Weight | 5.5 lb |
| Overall Length | 6 5/8 in |
| Duty Rating | Industrial Duty |
| Impact Rated | Yes |
| Power Source | Air Powered |
| Includes | Torque Regulator |
| Features | Low Vibration And Noise Level, Reliable Pin Clutch In Oil Bath, Steel Trigger For Harsh Environment |
| Standards | EN ISO 11148-6:2013, ISO-28927-2 |
| Country of Origin | Japan |
