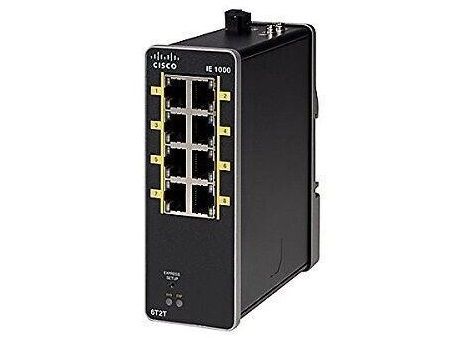

Cisco IE-1000-6T2T-LM Switch managed 2 x 10/100 (uplink) + 6 x 10/100 (downlink) DC power

Cisco IE-1000-6T2T-LM Switch managed 2 x 10/100 (uplink) + 6 x 10/100 (downlink) DC power

$1,397.00 - $1,397.00
$1,397.00
$1,397.00 - $1,397.00
$1,397.00

The Cisco Industrial Ethernet (IE) 1000 Series Switches are compact rugged switches aimed to operational technology (OT) users with limited IT network knowledge. The IE 1000 Series Switches provide an easy transformation from the legacy factory to digital solution. For machine builders and machine-to-machine (M2M) solutions is an attractive entry level product as a GUI-based, lightly-managed switch. The IE 1000 is a good fit for locations with harsh temperatures and small spaces, and is Power over Ethernet (PoE) capable with and zero IT management.

Main Specifications
Product Description Cisco Industrial Ethernet 1000 Series - switch - 8 ports - managed
Device Type Switch - 8 ports - managed
Subtype Fast Ethernet
Ports 2 x 10/100 (uplink) + 6 x 10/100 (downlink)
Routing Protocol IGMPv2, IGMP
Remote Management Protocol SNMP 2, SNMP, RMON, SNMP 3, HTTP, SSH
Features DHCP support, BOOTP support, IGMP snooping, Syslog support, full duplex mode, STP support, MSTP support, DHCP snooping, DHCP server, static IP mode, LLDP support, Port Security, MIB, CoS, DSCP support, BPDU, ICMP, MIB II
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP)
Power DC 12 - 24 V
Dimensions (WxDxH) 1.8 in x 4.5 in x 5 in
Weight 20.1 oz
General
Device Type Switch - 8 ports - managed
Enclosure Type DIN rail mountable
Subtype Fast Ethernet
Ports 2 x 10/100 (uplink) + 6 x 10/100 (downlink)
Routing Protocol IGMPv2, IGMP
Remote Management Protocol SNMP 2, SNMP, RMON, SNMP 3, HTTP, SSH
Authentication Method Secure Shell (SSH), RADIUS
Features DHCP support, BOOTP support, IGMP snooping, Syslog support, full duplex mode, STP support, MSTP support, DHCP snooping, DHCP server, static IP mode, LLDP support, Port Security, MIB, CoS, DSCP support, BPDU, ICMP, MIB II
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP)
RAM 128 MB
Flash Memory 160 MB
Expansion / Connectivity
Interfaces 8 x 100Base-TX RJ-45
Miscellaneous
MTBF 374,052 hours
Compliant Standards CISPR 22 Class A, EN55022, NOM, CB, EMC, ICES-003 Class A, RoHS, IEC 60068-2-30, KCC, WEEE, IEC 60068-2-27, IEC 60068-2-6, ANATEL, EN 61131-2, EN 61326-1, IEC 60068-2-64, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, CEM, EMI, IP30, IEC 60068-2-56, VCCI Class A, EN 50581, EAC, China RoHS, RCM, AS/NZS CISPR22:2004 Class A, NOM-001-SCFI-1993, CISPR 11 class A, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD, IEC60950-1, IEC 60068-2-3, FCC CFR47 Part 15 A, UL/CSA60950-1, UL/CSA/IEC/EN 61010-2-201, EN 55016-1-1 Class A, EN 55016-1-4 Class A, EN 55016-2-3 Class A, AS/NZS CISPR 24, NAL, IEC/EN/EN61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-9, IEC/EN 61000-4-29, IEC 60068-2-47, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4
Power
Voltage Required DC 12 - 24 V
Power Consumption Operational 5.3 Watt
Environmental Parameters
Min Operating Temperature -4 °F
Max Operating Temperature 158 °F
Humidity Range Operating 5 - 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 185 °F
Humidity Range Storage 5 - 95% (non-condensing)
Dimensions & Weight
Width 1.8 in
Depth 4.5 in
Height 5 in
Weight 20.1 oz
