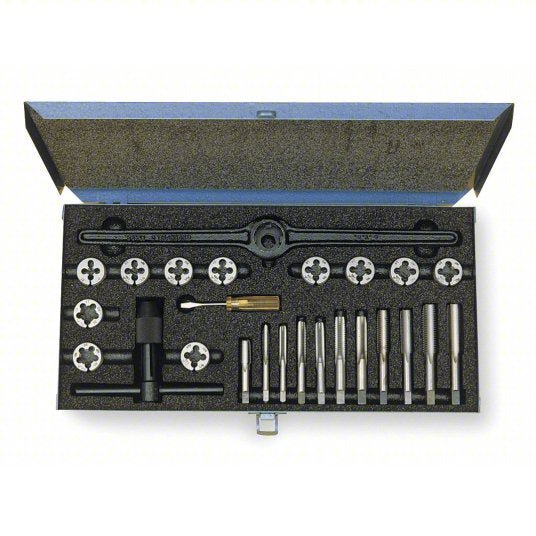

Cleveland C00532 Tap and Die Set 49 Pieces, 1/8"-27 Min. Tap Thread Size, 1"-14 Max. Tap Thread Size

Tap and Die Set, Number of Pieces 49, Die Shape Round, Tap Type Hand Tap, Die Material High Speed Steel, Thread Sizes Included 1'-14 NS, 1 In.-8 NC, 1/2 In.-13 NC, 1/2 In.-20 NF, 1/4 In.-20 NC, 1/4 In.-28 NF, 1/8 In.-27 NPT, 3/4 In.-10 NC, 3/4 In.-16 NF, 3/8 In.-16 NC, 3/8 In.-24 NF, 5/16 In.-18 NC, 5/16 In.-24 NF, 5/8 In.-11 NC, 5/8 In.-18 NF, 7/16 In.-14 NC, 7/16 In.-20 NF, 7/8 In.-14 NF, 7/8 In.-9 NC, 9/16 In.-12 NC, 9/16 In.-18 NF

Tap Chamfer	Plug, Taper
Number of Flutes	4
Tap Material	High Speed Steel
Tap Finish	Bright (Uncoated)
Number of Pieces	49
Material	High Speed Steel
Thread Type	NPT, UNC, UNF, UNS
SAE or Metric	SAE
Includes	Tap, Die and Collet for Each Size, Steel Case with Foam Liner
Die Shape	Round
Thread Direction	Right Hand
Die Type	Adjustable
Standards	ANSI
Finish	Mill
Left/Right Hand	Right Hand
Tap Wrench Number	#5, #7
Die Material	High Speed Steel
Features	General Purpose Applications
Type	Fractional
Material - Machining	High Speed Steel
Secondary Material Application	Stainless Steel
Tap Type	Hand Tap
Class of Fit	2B
Finish - Machining	Bright (Uncoated)
Number Of Taps	21
Primary Material Application ISO Code	H, K, M, N, P, S
Die Material Grade	Carbon Steel
Secondary Material Application ISO Code	M
Primary Material Application	All Materials
Spiral Direction	Neutral
Powdered Metal Base Material	No
Number of Dies in Set	21
Extension Tap	No
Coolant Fed	Non-Coolant Through
Case Type	Metal
Helix Angle	0 Degrees
Extended Shank	No
Die Series	0610
Thread Standard	NPT, UNC, UNF, UNS
Thread Limit	H3, H4
Measurement System	Fractional Inch
Die Finish	Bright (Uncoated)
Tap Shank Standard	Table 302
Threads per Inch	8, 9, 10, 11, 12, 13, 14, 16, 18, 20, 24, 27, 28
Tap Series	411
Extended Neck	No
Tap Material Grade	M2
