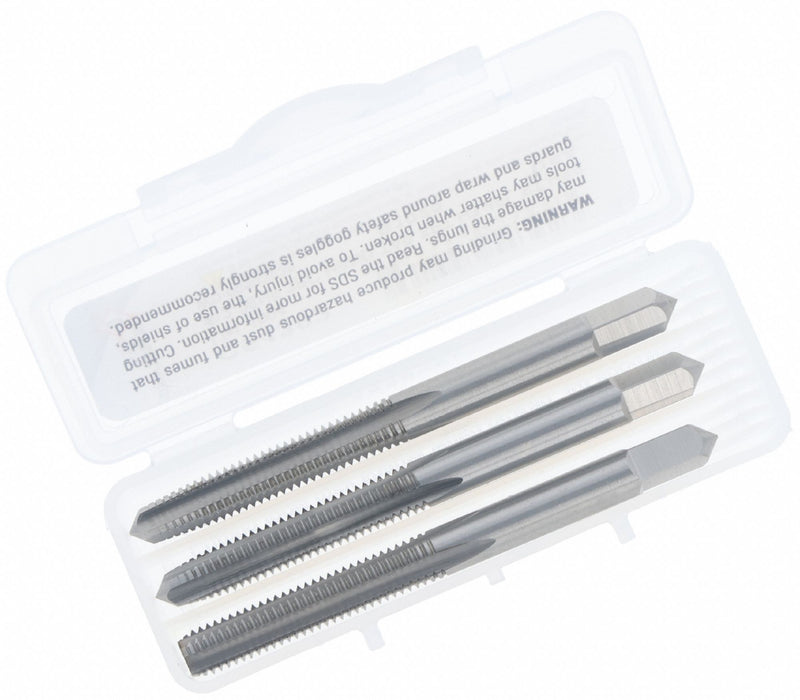

Cleveland C54377 Hand Tap Kit, M5 x 0.8 Metric, 3-Piece (Bottoming/Plug/Taper), HSS, Uncoated, 4-Flute
Original price
$74.32
-
Original price
$74.32
Original price
$74.32
$74.32
-
$74.32
Current price
$74.32
Three Piece Tap Kit, Tap Thread Size M5-0.80, High Speed Steel, Bright (Uncoated), Thread Standard Metric, Thread Length 15/16 in, Overall Length 2 3/8 in, 75 Percent Thread Drill Size 4.20 mm, Thread Limit D4, Class of Fit 6H, Thread Direction Right Hand, Number of Flutes 4
| Tap Material | High Speed Steel |
| Tap Chamfer | Bottoming, Plug, Taper |
| Tap Style | Straight Flute (Hand) |
| Number of Flutes | 4 |
| Thread Direction | Right Hand |
| Standards | USCTI Table 302A |
| Number of Pieces | 3 |
| Tap Finish | Bright (Uncoated) |
| Tap Thread Type | Metric |
| List Number | 1004 |
| Includes | (1) Bottoming Tap, (1) Plug Tap, (1) Taper Tap |
| Class of Fit | 6H |
| Thread Pitch | 0.80mm |
| Thread Standard | Metric |
| Series | 1004 |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel |
| Number Of Taps | 3 |
| Features | Taper-Plug-Bottoming |
| Tap Type | Straight Flute |
| Tap Shank Standard | USCTI Table 302A |
| Primary Material Application ISO Code | K, M, N, P |
| Measurement System | Metric |
| Coolant Fed | Non-Coolant Through |
| Thread Limit | 2B |
