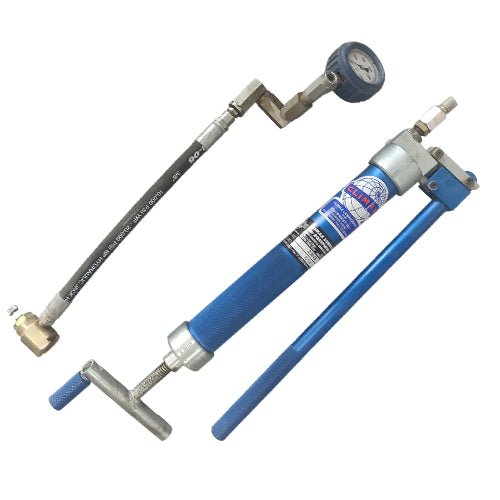

Climax 10516-S GREASE GUN COMPLETE W/HOSE ASSEMBLY, "Z" SWIVEL & GAUGE

Climax 10516 Hand Held Screw Prime Grease Guns

For installations with valves requiring frequent service, a hand operated 10516 Screwprime Hand Gun is recommended. This gun permits speedier servicing and also prevents waste of sealant and over filling of valves.

Characteristics include:

• Efficient and controlled Plug Valve Lubrication
• Handles the heaviest plug valve lubricant/sealants
• Builds pressure up to 10,000 lbs. plus
• Strong, Durable Aluminum Barrel, Cast Steel Head & Collar
• High Pressure Piston of Finest Lapped Steel
• Positive Prime, Screw Type Plunger Assembly
• Provides 20 or more Strokes without Re-Prime
• Uses "K" Size Stick (1 ½" Dia. x 12" long)
• Giant Buttonhead Coupler with Pressure Release
• Hose Assembly (1/4" I.D. x 12" long H.P. Grease Hose with Built-in Swivels or Available with 1/2"-27 THD Straight Swivel on one end, 5,000 PSI WP- Standard).

No. 10516-S

Exactly like the Climax 10516 Gun with a Part No. 10557 Z-Swivel (1/4" NPT x 1/2" - 27 THD), 1/4"-NPT High Pressure "TEE" and 15,000 PSI Gauge with protector for more efficient lubrication of Plug Valves.
