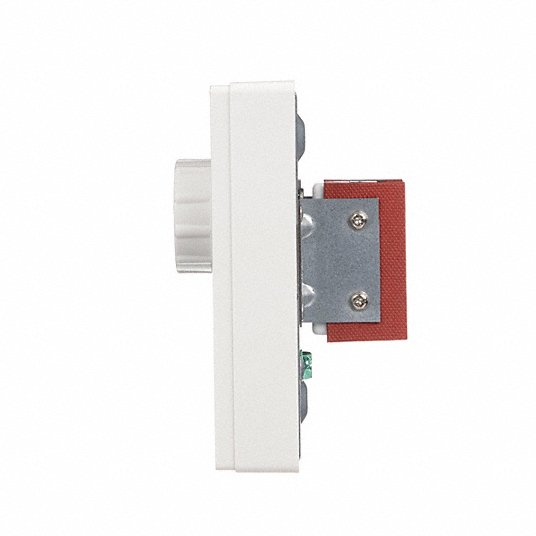

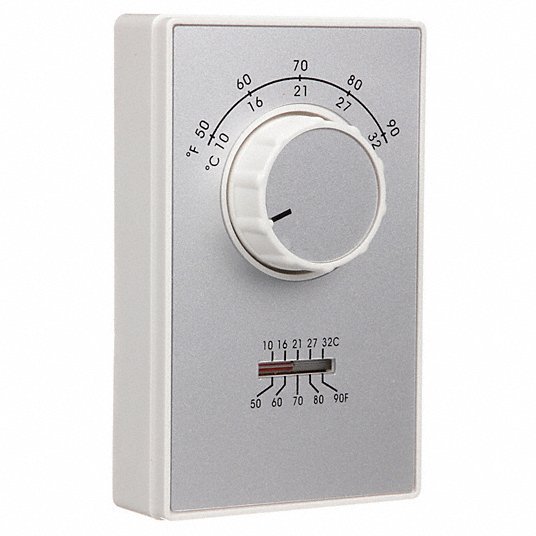

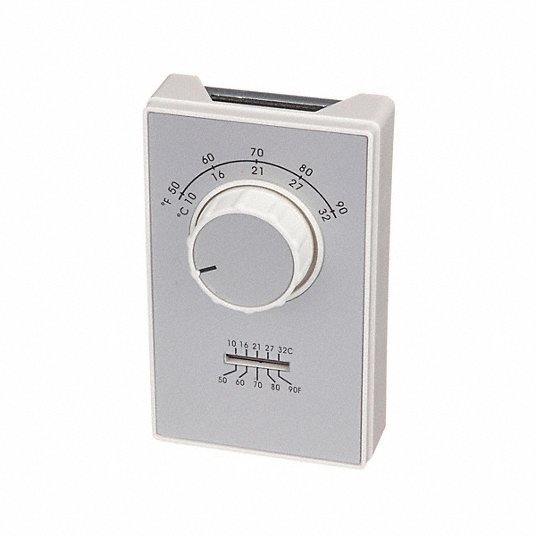

Columbus ETD9STGS Line Volt Mechanical Tstat, Open/Close on Rise, wall, SPDT
Original price
$27.20
-
Original price
$27.20
Original price
$27.20
$27.20
-
$27.20
Current price
$27.20
Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 50 Degrees to 90 Degrees F, Thermostat Voltage 120 to 277V AC, Full Load Amps @ 120VAC 22 A, Full Load Amps @ 240VAC 22 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included No, Switch Action Open/Close on Rise, Number of Switches 1, Differential 2 to 4 Degrees F, Height 4 3/4 in, Width 2 3/4 in, Depth 1 1/2 in
| Switch Action | Open/Close on Rise |
| Sensor Type | Bi-Metallic Spring |
| Differential | 2 to 4 Degrees F |
| Display Type | Analog |
| Thermostat Control Range | 50 Degrees to 90 Degrees F |
| Mounting Location | wall |
| Switch Type | SPDT |
| Color | White/Metallic Plate |
| Contact Rating Resistive @ 240V | 22 A |
| Thermostat Heating/Cooling | Heating/Cooling |
| Thermostat Switch Type | SPDT |
| Standards | UL and CSA |
| Thermostat Voltage | 120 to 277V AC |
| Thermostat Programmable | No |
| Mounting Type | Vertical |
| Contact Rating Resistive @ 277V | 22 A |
| Inductive Amps @ 120V | 13.8 A |
| Locked Rotor Amps @ 120V | 82.8 A |
| Number of Switches | 1 |
| Remote Sensing Capability | No |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Contact Rating Resistive @ 120V | 22 A |
| Full Load Amps @ 120VAC | 22 A |
| Includes | Thermometer |
| Item | Line Volt Mechanical Tstat |
| Full Load Amps @ 240VAC | 22 A |
| Remote Sensing Bulb Included | No |
| Locked Rotor Amps @ 240V | 60 A |
| Inductive Amps @ 240V | 10 A |
| For Use With | Blowers, Furnace Fans, Baseboard and Ceiling Heaters |
| Display | Analog |
| Voltage Range | 120 to 277VAC |
| Type | Heating/Cooling |
| Compatible System Type | Electric Cooling, Electric Heating |
| Temperature Control Range | 50 Degrees to 90 Degrees F |
| Number of Cooling Stages | 1 |
| Includes Positive Off | No |
| System Settings | Cool-Heat-Off |
| Housing Color | White |
| Temperature Differential | 2 Degrees to 4 Degrees F |
| Number of Heating Stages | 1 |
| Mounting Direction | Vertical |
| Minimum Control Temperature | 50 Degrees F |
| Stages | 1H/1C |
| Differential Type | Fixed |
| Changeover Type | Manual |
| Switch Type/Action | SPDT, Open/Close on Rise |
| Temperature Readout | Yes |
| Housing Material | Plastic |
| Temperature Scale | Fahrenheit/Celsius |
| Maximum Control Temperature | 90 Degrees F |
| Fan Settings | No Fan Setting |
| Package Quantity | 1 |
