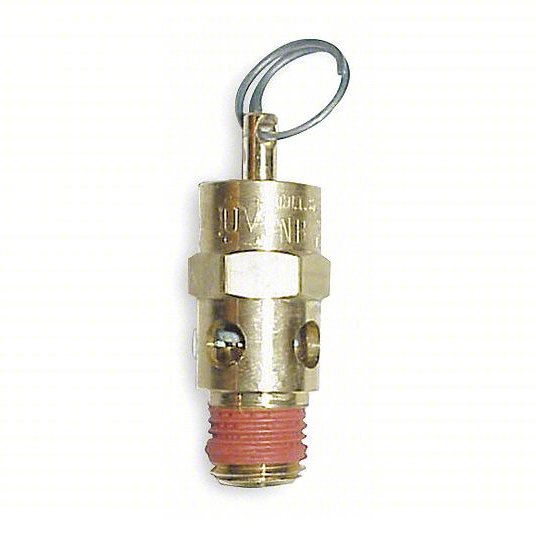

Control Devices ST25-1A200 Air Safety Valve, 1/4 In Inlet, 200 psi
Original price
$8.19
-
Original price
$8.19
Original price
$8.19
$8.19
-
$8.19
Current price
$8.19
Air Safety Valve, Soft Seat, (M)NPT Inlet (In.) 1/4 in, Preset Setting (PSI) 200 psi, 178 cfm Rated CFM @ Set Pressure, Max. Temp. (F) 250 Degrees F, Brass Body Material, Silicone Seal, Resilient Silicone Elastomer Poppet, Stainless Steel Spring, Brass Seat, Silicone O-Ring, Vibra Seal Thread Coating, Standards ASME, CRN, NATIONAL BOARD, Compressed Air Safety Relief, Standard / Low Flow
| Valve Type | Soft Seat |
| (M)NPT Inlet (In.) | 1/4 in |
| Preset Setting (PSI) | 200 psi |
| Rated CFM @ Set Pressure | 178 cfm |
| Thread Coating | Vibra Seal |
| O-Ring | Silicone |
| Standards | ASME, CRN, NATIONAL BOARD |
| Application | Compressed Air Safety Relief, Standard / Low Flow |
| Spring | Stainless Steel |
| Poppet | Resilient Silicone Elastomer |
| Body Material | Brass |
| Seal | Silicone |
| Seat | Brass |
| Max. Temp. (F) | 250 Degrees F |
| Item | Air Safety Valve |
