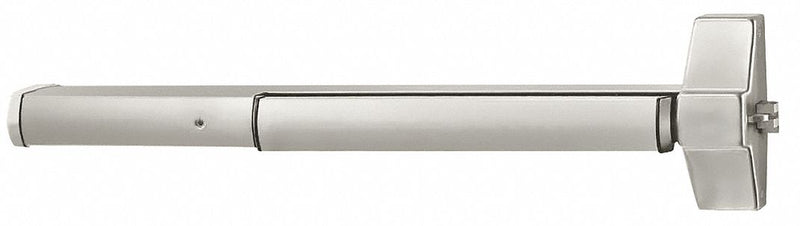

Corbin Russwin ED5200S 630 Rim Exit Device, ANSI Grade 1, 48 in Max Door Wd, Touchbar, Non-Handed, Satin Stainless Steel
Original price
$2,058.94
-
Original price
$2,058.94
Original price
$2,058.94
$2,058.94
-
$2,058.94
Current price
$2,058.94
Rim push bar exit device for commercial and institutional doors. Mounts on the surface of the door's interior side for easy installation without a mortise lock, including on glass and decorative doors. Touchbar style allows quick exit through the doorway with ANSI Grade 1 performance, hex key dogging lockdown, and UL/cUL listed fire-rated certification. Non-handed for left or right hand swing.
| Product Type | Exit Device |
|---|---|
| ANSI Grade | 1 |
| Performance Duty Rating | 1 |
| Hand Orientation | Non-Handed |
| Outside Trim Type | Not Included |
| Exit Bar Style | Touchbar |
| Door Width - Minimum | 24 in |
| Door Width - Maximum | 48 in |
| Door Height - Maximum | 96 in |
| Door Thickness - Minimum | 1-3/4 in |
| Door Thickness - Maximum | 1-3/4 in |
| Finish | Satin Stainless Steel |
| Lockdown Type | Hex Key Dogging |
| Fits Stile Width | 4-1/2 in |
| Lockset Function | Factories; Government Buildings; Hotels; Office; Retail Stores; Schools; Theaters |
| Properties | Vandal-Resistant |
| ADA Compliant | Yes |
| Ligature Resistance | Not Ligature-Resistant |
| Standards | 4140-1305:0125; CAL FIRE 3725-1305:0124; CAL FIRE 3725-1305:0127; CAL FIRE 4140-1305:0126; EPD; NFPA 101; TAA Compliant; UL 305; UL and cUL Listed |
| Country of Origin | United States |
