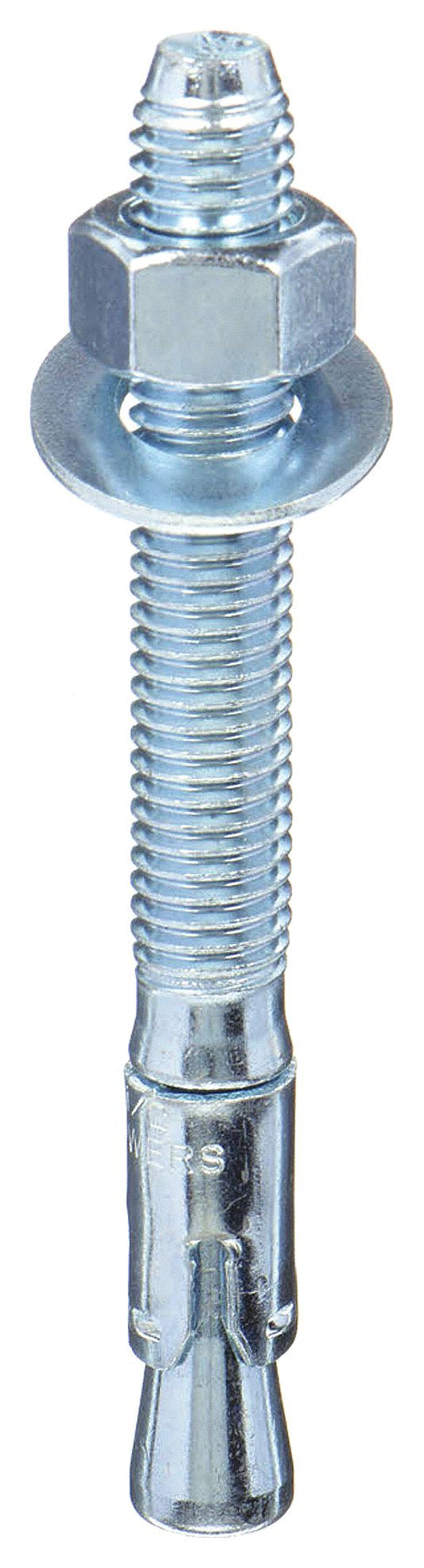

DEWALT 7413SD1-PWR Wedge Anchor, 3 in Overall Lg, 3/8 in Dia, 3/8"-16 Thread Size, 1 5/8 in Thread Lg, 50 PK
UPC: 075352775975 | Harmonization / Schedule B : 7318.15.2000
Country of Origin: China | Shipping Weight: 5.07 lbs
Original price
$56.11
-
Original price
$56.11
Original price
$56.11
$56.11
-
$56.11
Current price
$56.11
Wedge Anchor, System of Measurement Inch, Anchor Diameter 3/8 in, Thread Size 3/8 In.-16, Overall Length 3 in, Thread Length 1 5/8 in, Material Steel, Material Grade/Class Medium Carbon, Finish Zinc Plated, Compatible Material Concrete, Drill Bit Size 3/8 in, Minimum Installation Depth 1 5/8 in, Minimum Material Thickness 3 3/4 in, Nut Width 0.5625 in, Washer Outside Diameter 0.8125 in, Wedge Anchor Type Wedge Anchor, Seismic Approved Yes, ICC Approved for Cracked Concrete Yes
| Anchor Diameter | 3/8" |
|---|---|
| Overall Length | 3" |
| Drill Bit Size | 3/8 in |
| Thread Size | 3/8"-16 |
| Minimum Installation Depth | 1-5/8" |
| Maximum Material Thickness | 1" |
| Thread Length | 1 5/8 in |
| Washer Outside Diameter | 0.8125 in |
| Minimum Material Thickness | 3 3/4 in |
| Nut Width | 0.5625 in |
| Wire Rope Length | 3 in |
| CAD Available | Yes |
| Compatible Material | Concrete |
| Sub-Brand | Power-Stud+ SD1 |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Seismic Approved | Yes |
| ICC Approved for Cracked Concrete | Yes |
| Ultimate Pullout (Lb.) | 2,685 lb |
| Ultimate Shear (Lb.) | 2,540 lb |
| Ultimate Shear in 3000 PSI Concrete (Lb.) | 2,540 lb |
| ICC Approved for Un-Cracked Concrete | Yes |
| Embedment In Concrete | 1 5/8 in |
| Includes | Nut, Washer |
| Ultimate Tension in 3000 PSI Concrete (Lb.) | 2,685 lb |
| Ultimate Tension (Lbs.) | 2,685 lb |
| Material Grade | Medium Carbon |
| Industry Standards | 2012 IBC/IRC, 2015 IBC/IRC, 2018 IBC/IRC, 2021 IBC/IRC, FM Approved, ICC-ES AC01, UL Listed |
| Wedge Anchor Type | Wedge Anchor |
| Maximum Installation Torque | 20 ft-lb |
| Material Grade/Class | Medium Carbon |
| System of Measurement | Inch |
| Thread Type | Coarse |
| Series | Power-Stud+ SD1 |
| Material Quality Standards | ASTM E-488 |
| Manufacturer Location | Globally Sourced |
| Thread Style | Fully Threaded |
| Minimum Installation Torque | 20 ft-lb |
| Country of Origin | Multiple |
