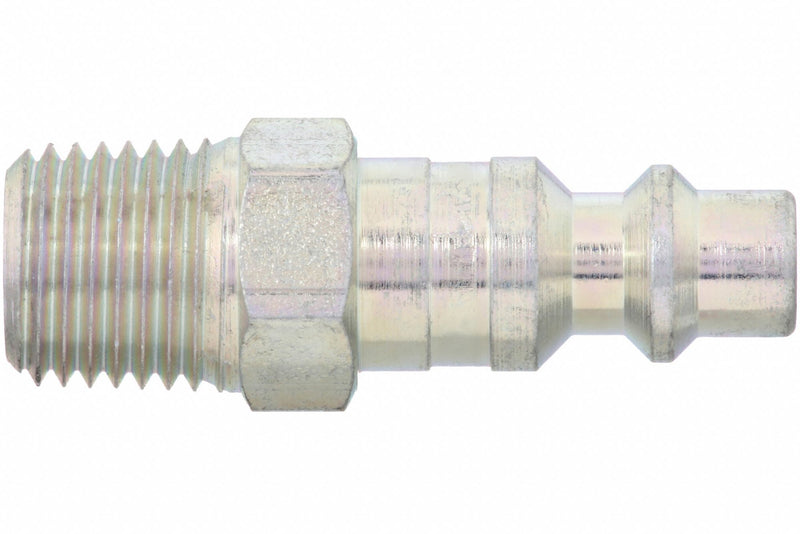

Dixon D3M3 Industrial Quick Connect Plug, 3/8 in Body, 3/8 in MNPT, Steel, 500 psi
Original price
$4.95
-
Original price
$4.95
Original price
$4.95
$4.95
-
$4.95
Current price
$4.95
Industrial interchange steel quick-connect air coupling plugs are the male end of coupling sets. Also called nipples, they're inserted into the coupling bodies (female ends) to connect tools to air lines. High-flow couplings increase flow for greater tool efficiency, reduce pressure drop, and decrease air costs. Steel couplings are hard and resilient with more damage resistance than softer metals and a wide working temperature range.
| Interchange Type | Industrial |
| Material | Steel |
| Coupling Component | Plug |
| Hose Fitting Gender | Male |
| Connection Type | NPT |
| Fitting Type | MNPT |
| Hose Fitting Size | 3/8 in |
| For Hose I.D. | 3/8 in |
| Body Size | 3/8 in |
| Thread Size | 3/8"-18 |
| Finish/Coating | Zinc Plated |
| Color | Silver |
| Barbed | No |
| Includes Valve | No |
| Max. Working Pressure @ 70 °F | 500 psi |
| Max. Flow Rate | 1,274.25 lpm |
| Coupling Locking Type | Sleeve |
| Seal Material | Nitrile |
| Overall Length | 1-7/8 in |
| Max. Outside Dia. | 7/8 in |
| Temp. Range | -40° to 250°F |
| Country of Origin | United States |
