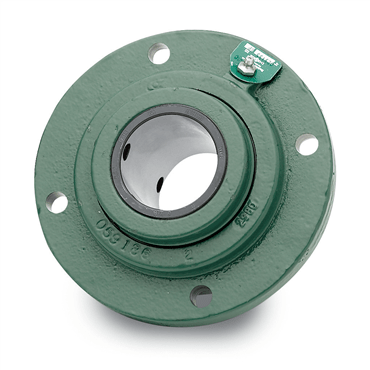

Dodge FCE307R Type E-Extra Bearing Unit

Dodge FCE307R Type E-Extra Bearing Unit

$2,108.34 - $2,108.34
$2,108.34
$2,108.34 - $2,108.34
$2,108.34
Type E-XTRA™ 4-Bolt Cast Iron Piloted Flange Unit
  • 3.438 in Shaft Diameter
  • Piloted Flange
  • Solid Housing Construction
  • Cast Iron Housing Material 023141

Description

  • Dodge Type E, industry-trusted and proven since 1943, is manufactured in Marion, NC. The US-manufactured, high-capacity mounted tapered roller bearing offers longer bearing life at a reliable and lower TCO.

Applications

  • Aggregate
  • Conveyors
  • Load out
  • Cement

Features

  • Shaft ready, factory lubed, sealed, and adjusted
  • Simple set screw mount with dual 65° Spring-lok collars
  • Case-hardened rollers and races
  • Dual XTS nitrile rubber, triple-lip seals
  • Housings optimized for (optional) Dodge OPTIFY™ sensor for bluetooth-enabled condition monitoring
  • (Optional) Field adaptable “XTS Plus”, E-Tect seal kit for longer life in wet or very dusty environments

Bearing Type Tapered Roller Bearing
End Type Open End
Bore Length 5 in
Duty Heavy-Duty
Bolt Diameter 0.75 in
Housing Length 10 1/4 in
Grease Name MobilGrease XHP222
Insert Material Steel
Bearing Design Non-Expansion
Static Load Capacity 108600 lbf
Bolt Size 3/4 in
Overall Width 5 in
Pilot Depth 1.25 in
Housing Width 4 3/16 in
Speed [Max] 1640 rpm
Bolt Circle Dia. 8.63 in
Housing Dimensional Standard Type E
Locking Device Dual Spring-lok Collar
Inch/Metric Inch
Shaft Dia. 3.4375 in
Flange Thickness 0.9375 in
Expansion Capability Fixed
Flange Type 4-Bolt Piloted Flange
Housing Height 10 1/4 in
Pilot Diameter 7.375 in
Mounted Unit Duty Heavy-Duty
Housing Material Cast Iron
Greasable Yes
Housing Construction One Piece
Bolt Hole Size 3/4 in
Style 4-Bolt Piloted Flange
Seal Type Contact Seals
Lubrication Grease
Weight 43.29 LB
EAN or UPC 782475697694
