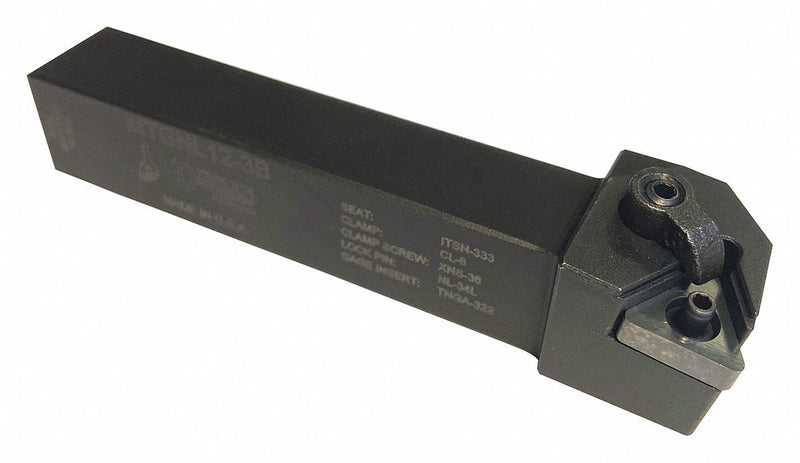

Dorian 73310150815 Indexable Turning Toolholder, MTGNL12-3B, TNMG Insert, 90° Approach, Left Hand, 4-1/2 in OAL
Original price
$93.60
-
Original price
$93.60
Original price
$93.60
$93.60
-
$93.60
Current price
$93.60
Indexable Turning Toolholder, MTGN, Insert Style TNM., Overall Length 4-1/2 in
| Clamp Screw | XNS-36 |
|---|---|
| Clamp | CL-6 |
| Shank | Square |
| Style | MTGNL12-3B |
| Insert Shape | Triangle |
| Rake | Negative |
| Type | TNMG Holder |
| Insert Screw | NL-34L |
| Shim | ITSN-322 |
| Cutting Direction | Left Hand |
| Insert Holding Type | Clamp and Lock Pin |
| ISO Number | MTGNL123B |
| Insert Clearance Angle | 0 Degrees |
| Approach Angle | 90 Degrees |
| ANSI Code | MTGNL123B |
| Cutting Application | Turning |
| Insert Inscribed Circle | 3/8 in |
| Insert Style | TNM. |
| Features | Hardened to 44 HRC |
| Side Cutting Edge Angle | 0 Degrees |
| Toolholder Style | MTGN |
| Shank Material | Alloy Steel |
| Lead Angle | 0 Degrees |
| Rake Angle | 7 Degrees |
| Inscribed Circle | 0.375" |
| Mounting Style | Multi-Lock |
| Country of Origin | United States |
