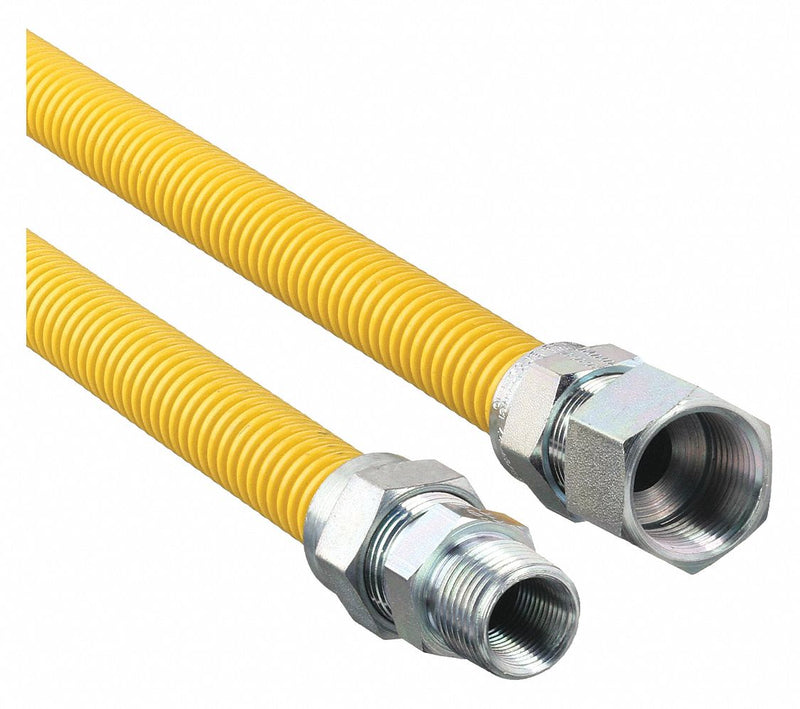

Dormont 20C-3132-60 Gas Connector, 3/8 in ID x 5 ft, 304 Stainless Steel, 1/2 in FNPT x 1/2 in FNPT, Yellow, 53,200 BTU
Original price
$43.61
-
Original price
$43.61
Original price
$43.61
$43.61
-
$43.61
Current price
$43.61
Dormont 20C-3132-60 flexible gas connector for gas dryers and gas water heaters. 3/8 in hose inside diameter, 1/2 in outside diameter, 5 ft length. 304 stainless steel hose with yellow safety coating. 1/2 in FNPT fittings (304 SS) on both ends. Max working pressure 0.5 psi at 70 F. Temperature range -40° to 350°F. BTU capacity 53,200. Meets ANSI Z21.15, Z21.18/CSA 9.1, Z21.24, Z21.41, Z21.69, Z21.90, UL 567, CSA 6.3/6.9/6.16/6.24.
| Hose Inside Dia. | 3/8 in |
| Hose Outside Dia. | 1/2 in |
| Hose Length | 5 ft |
| Hose Color | Yellow |
| Hose Tube Material | 304 Stainless Steel |
| Max. Working Pressure @ 70 F | 0.5 psi |
| Temp. Range | -40 Degrees to 350 Degrees F |
| Hose Fitting A Type | FNPT |
| Hose Fitting B Type | FNPT |
| Hose Fitting A Size | 1/2 in |
| Hose Fitting B Size | 1/2 in |
| Hose Fitting A Material | 304 Stainless Steel |
| Hose Fitting B Material | 304 Stainless Steel |
| Hose Configuration | Coupled Assembly |
| For Use With | Gas Dryers and Gas Water Heaters |
| BTU Capacity | 53,200 |
| Standards | ANSI Z21.15; ANSI Z21.18/CSA 9.1; ANSI Z21.24; ANSI Z21.41; ANSI Z21.69; ANSI Z21.90; ANSI/UL 567; CSA 6.16; CSA 6.24; CSA 6.9; CSA 6.3 |
